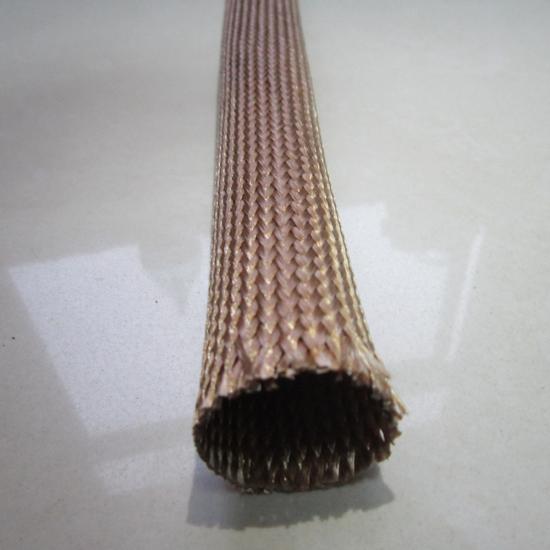

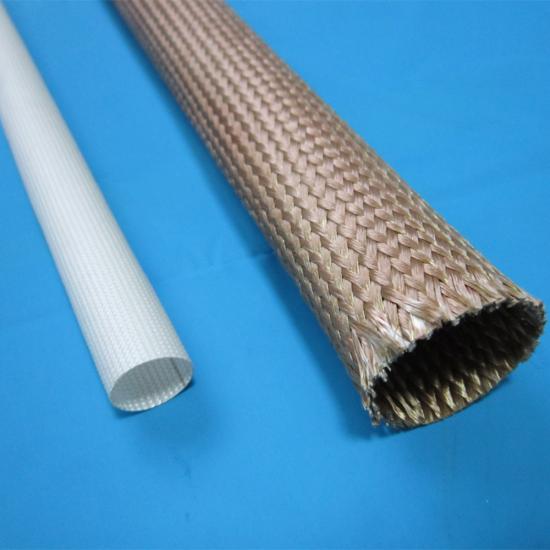

HTG Heat Treated Fiberglass Sleeving

HTG Heat Treated Fiberglass Sleeving is an expandable braided glass fiber sleeve capable of operating at a continuous temperature of 1000°F (538°C).
  • Description

  • Specifications

HTG Heat Treated Fiberglass Sleeving is a braided fibreglass sleeving treated at a high temperature to mould, dye color then impregnated with insulation resin. It is used in high temperature, low voltage applications and wherever repeated flexing or temperature extremes prohibit the use of other materials.

Constructed from a smooth glass fiber yarn, braided at high yield angles to allow for approximately 25% expansion and contraction.

Features
Thermal class: C
Operating temperature: -30℃–350℃ ;Short time peaks at 400℃
Breakdown voltage: 0.5 KV to 1.5 KV
Appearance: round and smooth surface

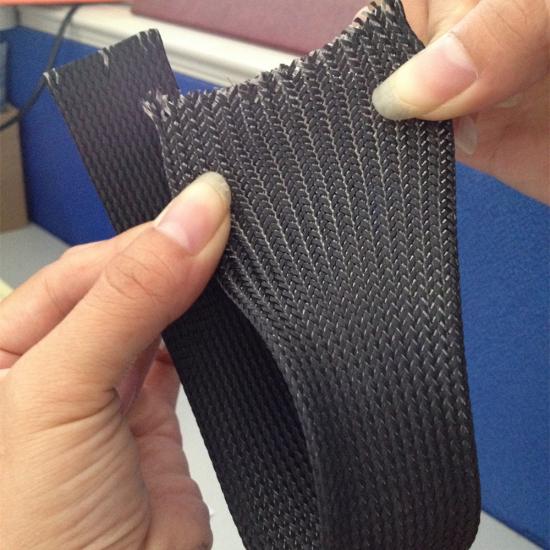

Standard color: black & light brown, others on request

Packaging details
For roll packaging:
-diameter 0.5 mm to 4 mm: 200 m
-diameter 5 mm to 20 mm: 100 m
-diameter 22 mm to 24 mm: 50 m
-diameter 26 mm to 30 mm: 25 m
Note: other length can be negotiated.

Inner packing: plastic bag
Outer packing: cartons(dimension: 33X33X57cm or 40X40X60cm)

inner dia. mm Dia. Tolerance mm Wall thickness mm
bialateral± unilateral+ GB/T 7113.5-400
Min. Max.
0.5 0.1 0.2 0.25 0.5
1/1.5 0.2 0.4 0.25 0.7
2/2.5/3 0.2 0.4 0.35 0.8
4/5/6 0.25 0.5 0.5 0.8
7/8 0.25 0.5 0.5 1
9/10 0.5 1 0.65 1
12/14 0.5 1 0.65 1.2
16/18/20 1 2 0.65 1.2
22/25/30 1 2 0.65 1.4
special size upon request.
