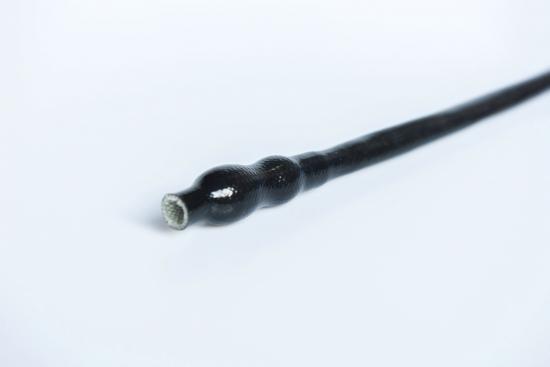

Expandable Silicone Rubber Fiberglass Sleeving is braided with non-alkali fiberglass yam and then coated with high elongation silicone resin. It possesses good properties of dielectric, heat resistance, self-extinguishing, softness and elasticity etc.
These sleevings are widely used as wiring insulation and protection for H grade electrical motors, domestic appliances and electric apparatus etc.
Features
• Thermal class: H
• Breakdown voltage: 1.5 KV to 10.0 KV
• Operating temperature: 60℃ –180℃，Short time peaks at 250℃
• Expandable rate; 20%-100%, upon request.
• Standard color; brick red, others on request.
Packaging details
• For roll packaging:
-diameter 0.5 mm to 4 mm: 200 m
-diameter 5 mm to 20 mm: 100 m
-diameter 22 mm to 24 mm: 50 m
-diameter 26 mm to 30 mm: 25 m
-diameter 32 mm to 50 mm: 20 m
Note: other length can be negotiated
• Inner packing: plastic bag
• Outer packing: cartons(dimension:33×33X57cm or 40X40X60cm)
