Acrylic Resin Glassfibre Thermal Protection Sleeve

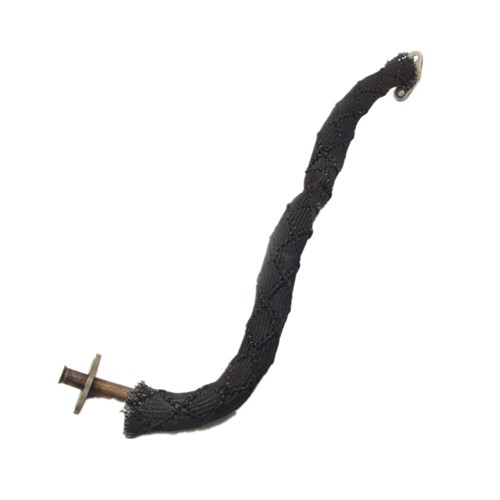

Acrylic Resin Glassfibre Thermal Protection Sleeve protects up to 1,200°F, significant abrasion protection and expands to much larger diameters. Ideal for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
  • Description

  • Specifications

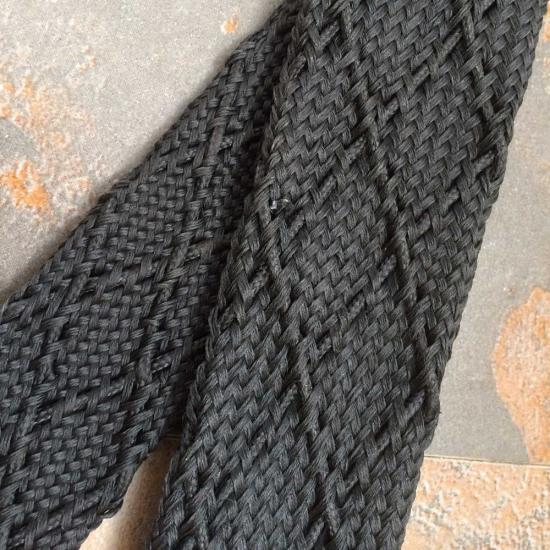

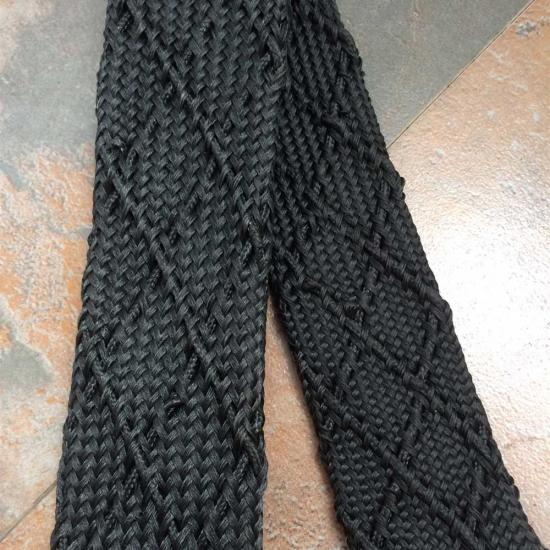

Acrylic Resin Glassfibre Thermal Protection Sleeve is a braided fibreglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving.
The sleeving is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut.
The high temperature fibreglass cord braided into sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths.
The sleeving is ideal for heat protection cables and hoses in a wide range of available sizes and will withstand temperatures up to 550°C.

DATASHEET
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
FGS-SN-11 7/16 11 -7 50
FGS-SN-13 1/2 13 -8 50
FGS-SN-16 5/8 16 -10 50
FGS-SN-19 3/4 19 -12 50
FGS-SN-22 7/8 22 -14 50
FGS-SN-25 1 25 -16 50
FGS-SN-29 1 1/8 29 -18 50
FGS-SN-32 1 1/4 32 -20 50
FGS-SN-35 1 3/8 35 -22 50
FGS-SN-38 1 1/2 38 -24 50
FGS-SN-41 1 5/8 41 -26 50
FGS-SN-44 1 3/4 44 -28 50
FGS-SN-48 1 7/8 48 -30 50
FGS-SN-51 2 51 -32 50
FGS-SN-57 2 1/4 57 36 50
FGS-SN-60 2 2/5 60 -38 50
FGS-SN-64 2 1/2 64 -40 50
FGS-SN-67 2 5/8 67 -42 50
FGS-SN-70 2 3/4 70 -44 50
FGS-SN-73 2 7/8 73 -46 50
FGS-SN-76 3 76 -48 50
FGS-SN-83 3 1/4 83 -52 50
FGS-SN-89 3 1/2 89 -56 50
FGS-SN-95 3 3/4 95 -60 50
FGS-SN-102 4 102 -64 50
FGS-SN-114 4 1/2 114 -72 50
FGS-SN-121 4 3/4 121 -76 50
FGS-SN-127 5 127 -80 50
FGS-SN-152 6 152 -96 50
