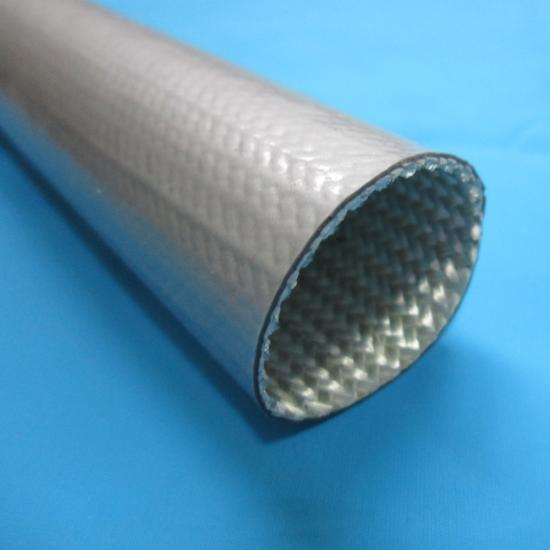

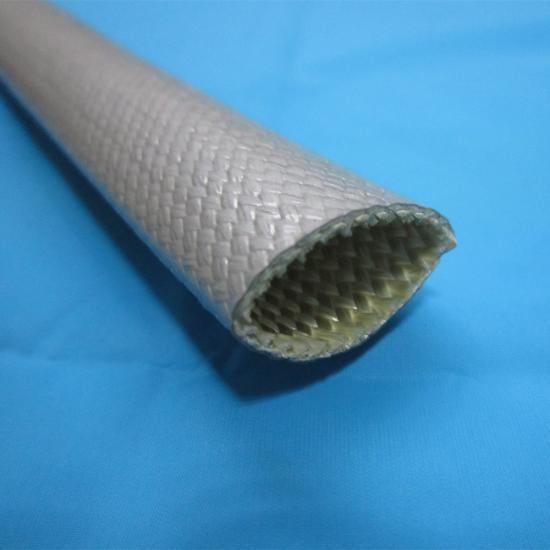

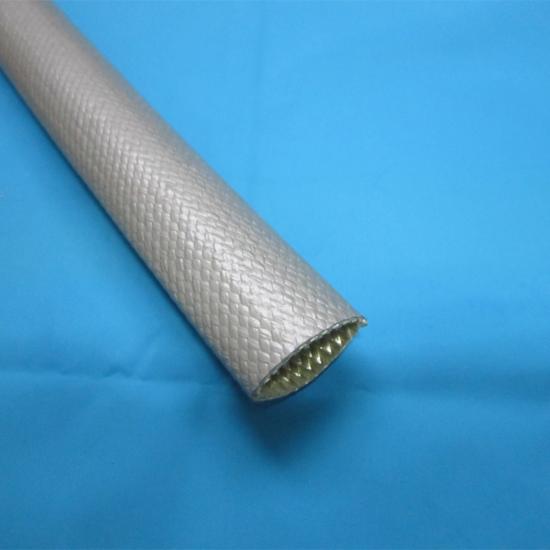

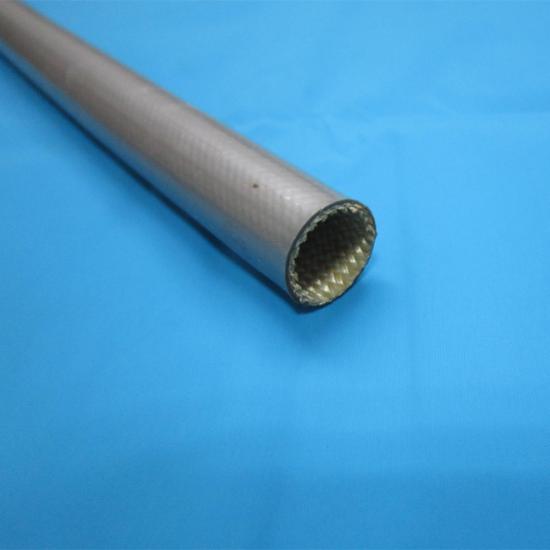

Reflectasil Reflective Silicone Sleeving is a tubular braided fiberglass sleeve coated with a reflective silicone elastomer compound.
This high temperature sleeve offers high flexibility under working temperatures ranging from -40°C up to +200°C.
Reflectasil Reflective Silicone Sleeving is suitable for heat and mechanical protection of wires, cables and hoses in contact with or close to a heat source.
Used widely within the automotive sector for the thermal protection of fuel lines, pipes, hoses and harnesses.
Characteristics
-40°C to +200°C
Silicone coated fiberglass sleeve
Protection in contact with or close to a heat source
Features
Thermal class : H
Breakdown voltage : 1.5 KV to 10.0 KV
Operating temperature: -60℃ –180℃；Short time peaks at 250℃
Standard color : aluminium, others on request
Packaging details
For roll packaging:
-diameter 0.5 mm to 4 mm : 200 m
-diameter 5 mm to 20 mm : 100 m
-diameter 22 mm to 24 mm : 50 m
-diameter 26 mm to 30 mm: 25 m
-diameter 32 mm to 50 mm: 20 m
Note : other length can be negotiated.
Inner packing : plastic bag
Outer packing: cartons (dimension 33*33*57 cm or 40*40*60 cm)
