products

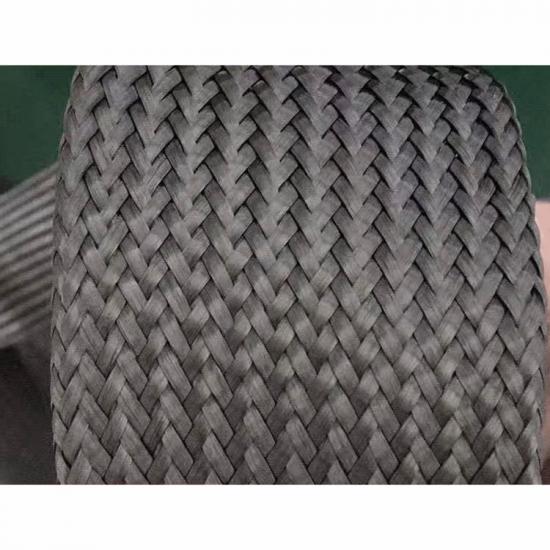

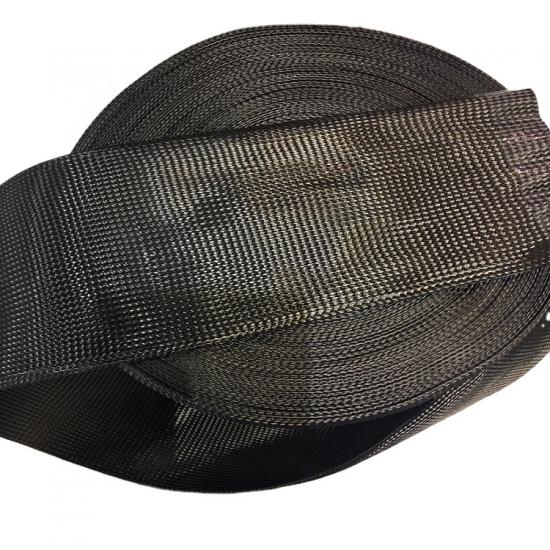

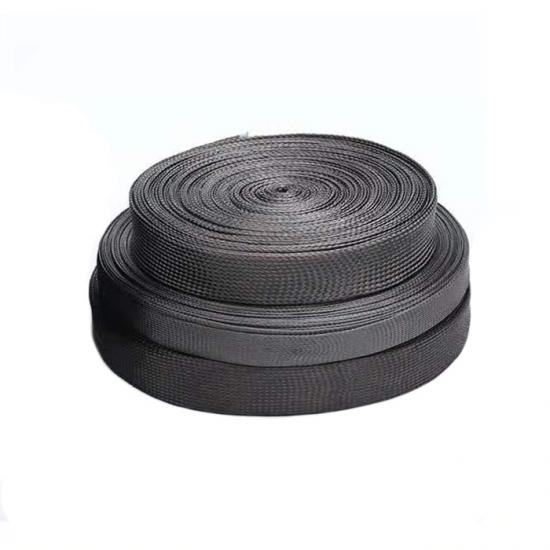

Braided Carbon fiber sleeve

Braided Carbon fiber sleeve is wovened with an standard modulus carbon fiber in a 45° orientation, these Braided Carbon Fiber Sleeves have the unique ability to easily and repeatably conform to various shapes.
  • Description

  • Specifications

Carbon fiber braided sleeve is made of 3K,6K,12K fiber yarn by special weaving process. It has high strength and light weight, and becomes the reinforcing material of many high performance materials.These sleeves will expand in diameter if the ends are pushed together and also will decrease in diameter if pulled from both ends.

Features:
1. Good performance on electrical insulation and heat preservation.
2. Extremly light but very stable.
3. High tensile strength and temperature resistance.
4. Flexible and easy to install.

Application:
1. Used to cover some surface irregular wires, cables or hose, good stability and high torsional strength.
2. Aerospace, Wind power, Marine, Exhaust pipe, Sports equipment, Machinery class, etc.
Model              Fiber type Spindle Diameter Range    Weight
(in mm) (g/m)
3K10 3k Carbon 48 8-12 10
3K13 3K Carbon 64 13-18 13
3K15 3K Carbon 72 19-22 15
3K20 3K Carbon 96 20-40 20
3K24 3K Carbon 120 40-50 25
3K29 3K Carbon 144 50-60 29
6K20 6K Carbon 48 15-25 20
6K26 6K Carbon 64 18-30 26
6K29 6K Carbon 72 19-35 29
6K39 6K Carbon 96 30-50 39
6K48 6K Carbon 120 50-65 48
6K58 6K Carbon 144 60-80 58
12K39 12K Carbon 48 20-35 39
12K52 12K Carbon 64 30-40 52
12K58 12K Carbon 72 35-50 58
12K77 12K Carbon 96 40-70 77
12K96 12K Carbon 120 60-100 96
12K116 12K Carbon 144 100-130 116
24K235 24K Carbon 144 64-127 235
