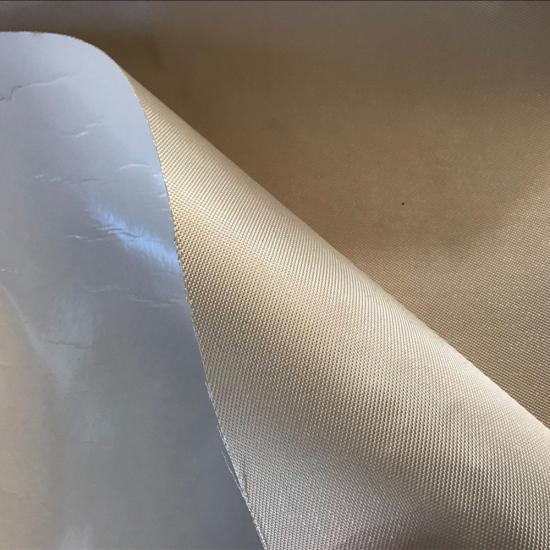

Adhesive Backed Silica Textile Blanket

Adhesive Backed Silica Textile Blanket is manufactured from a minimum 96% Silica content product, and with pressure-sensitive adhesive coating one side. Suitable for use at 1800°F (982°C), and able to withstand short term exposure up to 3000°F (1650°C).
  • Description

  • Specifications

Adhesive Backed Silica Textile Blanket is constructed from a 96% pure SiO2 silica fiber, coated one side with pressure-sensitive adhesive. This adhesive backed silica fabric can be cut on site to almost any shape.


Available in standard sizes or custom fabricated into almost any shape or supplied in curtain format with factory installed grommets to your specifications.


Technical Datasheet
Material Silica
Working temperature -40 - +982
Flammability VW-1
Melting point +1650
Standard Color Nature
Standard Thickness 0.75 mm
MOQ 46 meter each size
Cutting tool Scissors

DATASHEET
Part NO. Weight Thickness Width Wrap Weft Tensile strength(N/INCH)
g/m2 mm cm yarns/cm yarns/cm Wrap Weft
SIF-AB-0.75 600 0.75  92/100 18 13 1200 1000
SIF-AB-1 880 1.00  92/100 18 13 1300 1100
SIF-AB-1.3 1100 1.30  92/100 18 13 1500 1200
Note: special thickness upon request.
