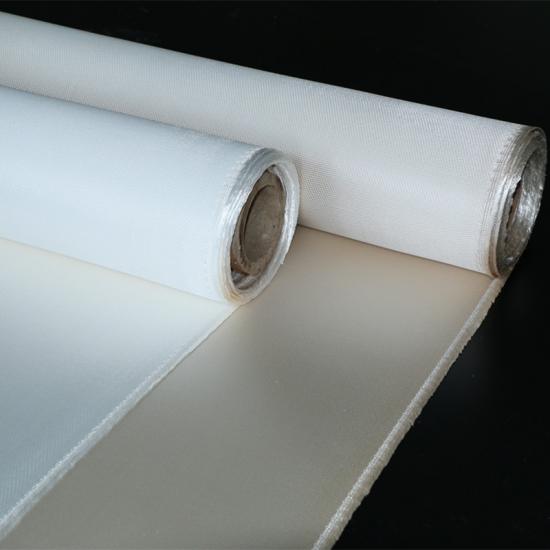

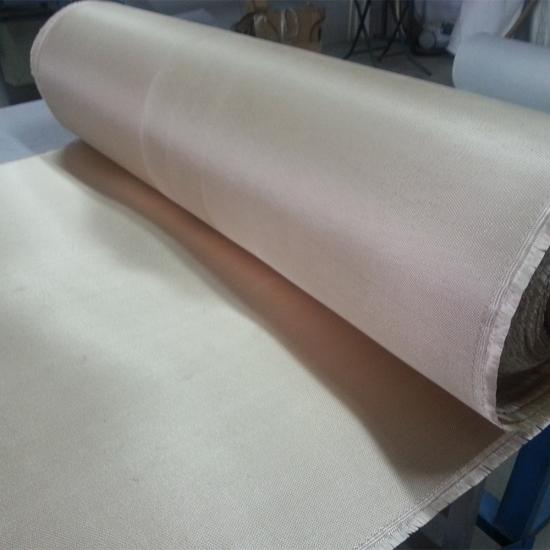

High Temperature Fireproof Silica Cloth

High Temperature Fireproof Silica Cloth is a high temperature fabric that has been specifically developed to give a drapeable flexible cloth capable of offering excellent continuous high temperature protection. Our silica fabrics offer excellent resistance to metal splash.
  • Description

  • Specifications

High Temperature Fireproof Silica Cloth is woven from yarn that is composed of more than 96% silica, provide superior protection from high temperatures, sparks, and slag. Silica Fabrics are treated with an inorganic high temperature coating that improves abrasion resistance and remains with the fabric even at high temperatures.

Silica Fabric supports continuous operating temperatures up to 1800°F / 980°C and peak temperatures up to 2300°F / 1260°C.

Texturised silica fabrics:
For added temperature and thermal insulation properties BSTFLEX also offers texturised Silica fabrics produced from texturized silica glass yarns with a silicon dioxide percentage of more than 96%. Thickness 2.0 mm and 3.0 mm.

Applications
Welding blankets
Welding curtains
Equipment protection
Insulation layers in pads and jackets
Welding pad
Furnace curtains
Thermocouple insulation wrap
Flame resistant barriers
Thermal barrier insulation

Item Products Standard Width cm Working Temp  Thickness mm Weight g/m² Silica content
1 Silica fabric 92 1000 0.3 300 96%
2 Silica fabric 92 1000 0.75 612 96%
3 Silica fabric 100 1000 0.75 612 96%
4 Silica fabric 130 1000 0.75 612 96%
5 Silica fabric 100 1000 1.0 880 96%
6 Silica fabric 92 1000 1.35 1100 96%
7 Silica fabric 100 1000 1.35 1100 96%
8 Silica fabric 92 1000 1.4 1200 96%
9 Silica fabric 92 800 0.75 600 70%±5%
10 Silica fabric 100 800 0.75 700 70%±5%
11 Silica fabric 152 800 0.85 700 70%±5%
12 Silica fabric 92 800 1.35 1100 70%±5%
13 Silica fabric 100 800 1.4 1200 70%±5%
14 Silica fabric 152 800 1.4 1200 70%±5%
15 Silica fabric 92 1000 2.0 1450 96%
16 Silica fabric 100 1000 2.0 1450 96%
17 Silica fabric 92 1000 3.0 1750 96%
