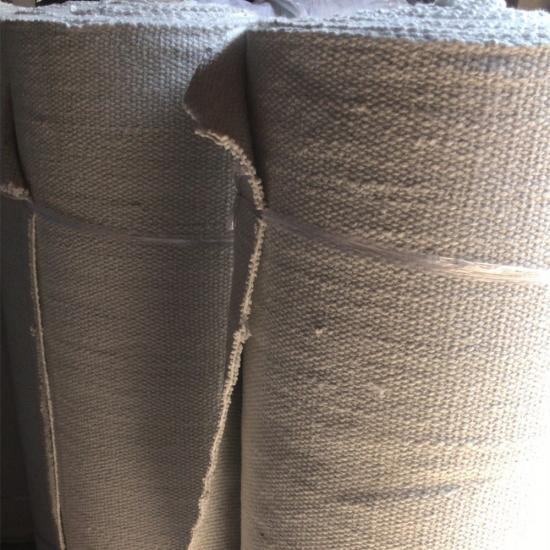

High Temperature Ceramic Fabric Reinforced with Fiberglass or SS wire

High Temperature Ceramic Fabric Reinforced with Fiberglass or SS wire is a high performance fabric with low organic content woven for use in industrial applications up to 1090˚C. The cloth is wire reinforced for high strength retention and durability at elevated temperatures.
  • Description

  • Specifications

High Temperature Ceramic Fabric Reinforced with Fiberglass or SS wire is a woven fabric made from high quality ceramic fiber yarn. It can be used for high temperature applications up to 1260°C. The cloth is reinforced with fiberglass filament and optional Inconel / stainless steel wire. Ceramic fiber cloth finds its application in heat insulation furnace curtain, Radiant heat shielding, Safety blankets, Welding blankets, Gaskets and pipe wrapping etc. Main charasteristics of this fabric are that it is light weight, has low thermal conductivity, Resists corrosive chemicals and is strong and abrasive.

Applications
Ceramic cloth provides excellent protection from molten metal splash and is recommended for welding, metal cutting and other metal processing.


Thickness 1.5mm,2mm,3mm,5mm,6mm
Length 20m,30m;Customizable
 Working Temperature:  800℃-1260℃
 Chemical Composition:  Al2O3+SiO2
 Thermal Conductivity:  0.12-0.20 w/m.k
 Shrinkage (1800℉, 3h):  <3%
 Fiber Diameter:  2um~5um
 Density:  500~550kg/m³

Thickness from 1.5 up to 5mm
DATASHEET
Part Number style Thickness weight Width Length
mm g/sqm cm m
CRF-FG-2 With Fiberglass 2 1000 100 30
CRF-FG-3 With Fiberglass 3 1500 100 30
CRF-MW-2 With Metal Wire 2 1000 100 30
CRF-MW-3 With Metal Wire 3 1500 100 30
