Thermal Insulation Self Closing Aluminum Foil Glass Fiber Sleeve

Thermal Insulation Self Closing Aluminum Foil Glass Fiber Sleeve braided open self closing sleeve made of combination of glass fiber yarn, polyester monofilament and aluminium foil with release paper backed adhesive tape along the edge.
  • Item NO.:

    SWALFS
  • Description

  • Specifications

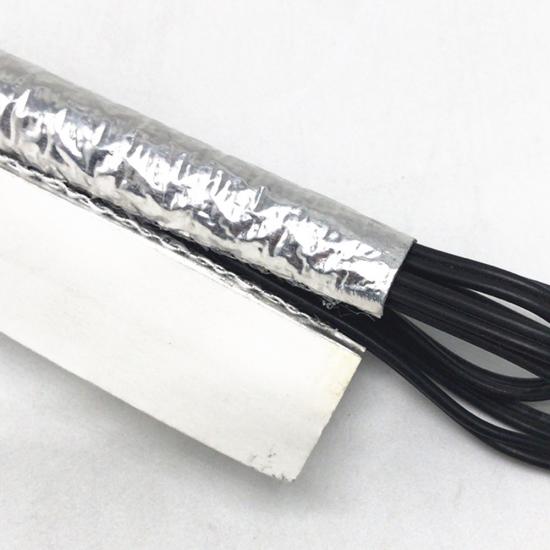

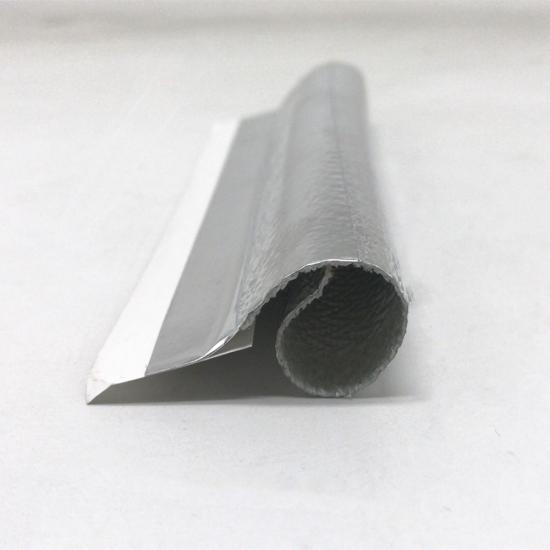

Thermal Insulation Self Closing Aluminum Foil Glass Fiber Sleeve is made of aluminum foil, fiberglass and polyester. This aluminized PET film coated fiberglass split sleeve has an adhesive strip along one long edge to close the sleeve after installation.
This sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool.


Features

Material: Aluminum foil + fiberglass + polyester
Operating temperature: -40ºC to +200ºC
Easy to apply
Electromagnetic shielding
Flexible
Halogen free
Self closing
Self extinguishing
Thermal insulating properties


Applications
It is used to protect bundles of wires and cables, hoses, pipes, tubing, and more. Widely used in automotive wiring harness protection, high voltage and high temperature environments.

Custom Options
Custom short length upon request
Special bulk packaging to maximize productivity, minimize waste

aluminized PET film coated fiberglass split sleeve

Part Number Normal Inside diameter
Inches mm Dash #
SWALFS-10 3/8 10 -6
SWALFS-13 1/2 13 -8
SWALFS-16 5/8 16 -10
SWALFS-19 3/4 19 -12
SWALFS-25 1 25 -16
SWALFS-29 1 1/8 29 -18
SWALFS-32 1 1/4 32 -20
SWALFS-35 1 3/8 35 -22
SWALFS-38 1 1/2 38 -24
SWALFS-41 1 5/8 41 -26
SWALFS-44 1 3/4 44 -28
SWALFS-48 1 7/8 48 -30
SWALFS-51 2 51 -32
