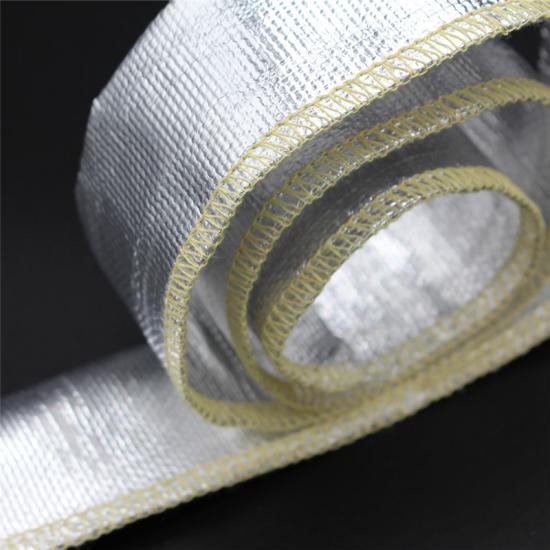

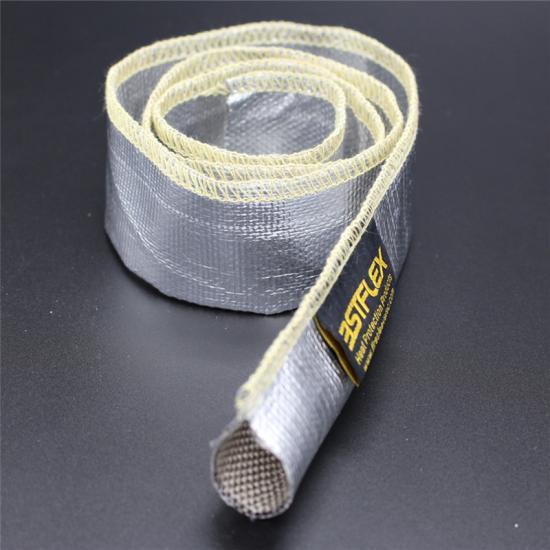

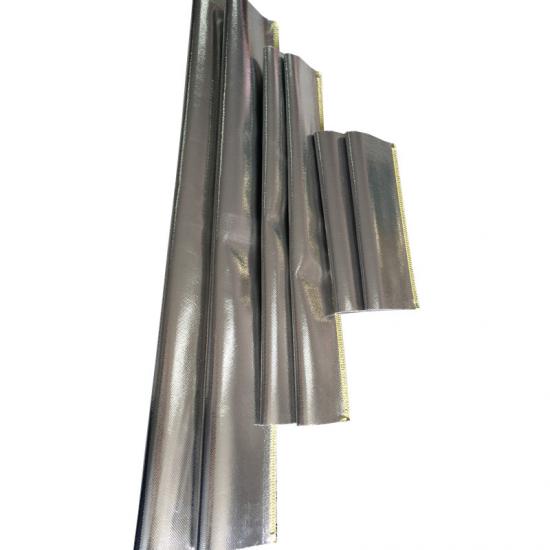

Sewn Heat Reflective Aluminum Coated Fiberglass Sleeve

Sewn Heat Reflective Aluminum Coated Fiberglass Sleeve used to protects wiring, cables and hoses from radiant and convective heat. Protects from radiant heat by reflecting 95% of the heat that contacts its surface.
  • Item NO.:

    SEALFS
  • Description

  • Specifications

Sewn Heat Reflective Aluminum Coated Fiberglass Sleeve is fabricated from a roll fabric, and is sewn with a double lock-stitch seam utilizing hightemperature Kevlar thread. The resulting sleeve has a teardrop or tadpole profile when viewed on-end.

Melting Point: 600+°C
Working Temp: -50°C to +200°C


Applications
This reflect sleeve provide high heat protection and joining them to create a high temperature heat shield that protects wires, cables, hoses and pipes from radiant and convective heat.

Custom Options
Custom short length upon request
Special bulk packaging to maximize productivity, minimize waste

Size Range
ID 6mm to 150 mm
DATASHEET
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
SEALFS-13 1/2 13 -8 50
SEALFS-16 5/8 16 -10 50
SEALFS-19 3/4 19 -12 50
SEALFS-22 7/8 22 -14 50
SEALFS-25 1 25 -16 50
SEALFS-29 1 1/8 29 -18 50
SEALFS-32 1 1/4 32 -20 50
SEALFS-35 1 3/8 35 -22 50
SEALFS-38 1 1/2 38 -24 50
SEALFS-41 1 5/8 41 -26 50
SEALFS-44 1 3/4 44 -28 50
SEALFS-48 1 7/8 48 -30 50
SEALFS-51 2 51 -32 50
SEALFS-57 2 1/4 57 36 50
SEALFS-60 2 2/5 60 -38 50
SEALFS-64 2 1/2 64 -40 50
SEALFS-67 2 5/8 67 -42 50
SEALFS-70 2 3/4 70 -44 50
SEALFS-73 2 7/8 73 -46 50
SEALFS-76 3 76 -48 50
SEALFS-83 3 1/4 83 -52 50
SEALFS-89 3 1/2 89 -56 50
SEALFS-95 3 3/4 95 -60 50
SEALFS-102 4 102 -64 50
