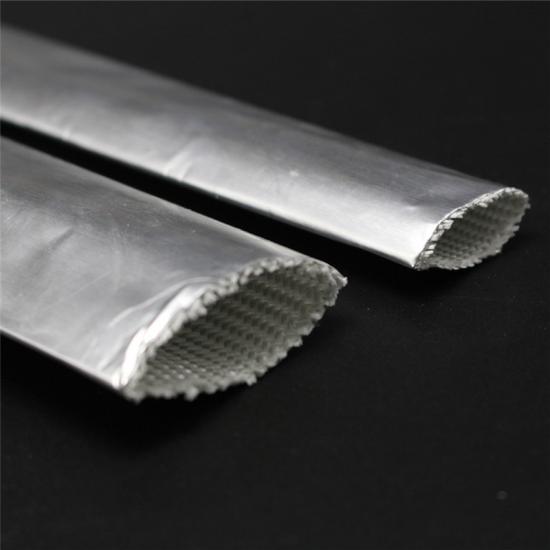

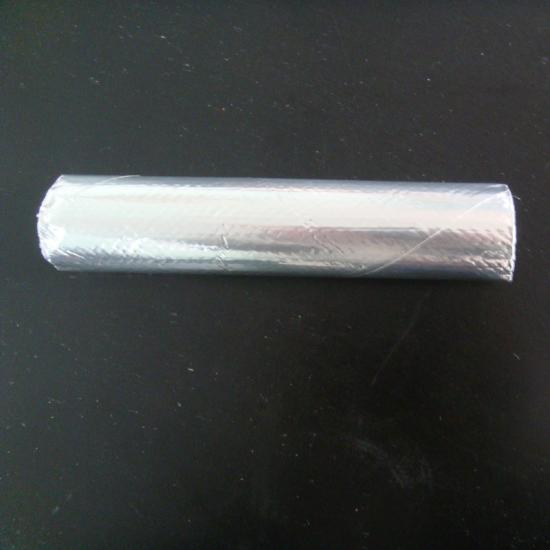

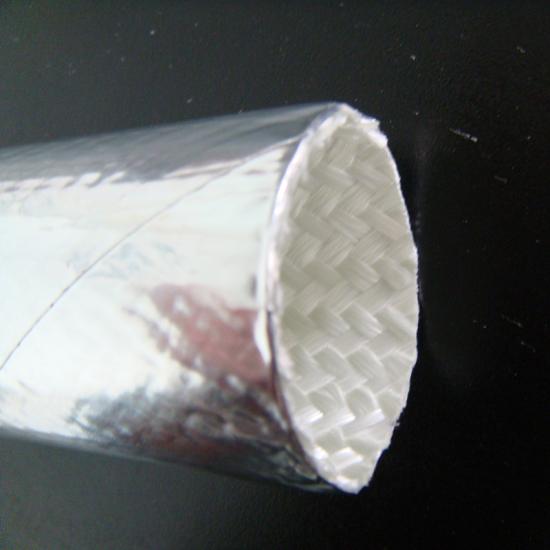

Heat Reflecting Aluminum foil Coated Fiberglass Sleeve

Heat Reflecting Aluminum foil Coated Fiberglass Sleeve made by aluminum foil and fiberglass, the outer aluminum foil layer redirect up to 90% of the radiant energy from hot steel slabs, molten metals, engine exhaust manifolds and open flames. The inner layer of fiberglass is designed for long term continuous operation temperatures of more than 400°C.
  • Item NO.:

    ALFS
  • Description

  • Specifications

ALFS Heat Reflecting Aluminum foil Coated Fiberglass Sleeve is a fiberglass sleeve with a reflective aluminum lamination which creates a reinforced shield between your wires and cables and extreme temperatures up to 330C (626F) without incinerating, melting or deteriorating.

Melting Point: 600+°C
Working Temp: -50°C to +200°C


Applications
This reflect sleeve provide high heat protection and joining them to create a high temperature heat shield that protects wires, cables, hoses and pipes from radiant and convective heat.

Custom Options
Custom short length upon request
Special bulk packaging to maximize productivity, minimize waste

Size Range
ID 6mm to 150 mm
DATASHEET
Part Number Normal Inside diameter Meter for Length
Inches mm Dash # Meter
ALFS-13 1/2 13 -8 20
ALFS-16 5/8 16 -10 20
ALFS-19 3/4 19 -12 20
ALFS-22 7/8 22 -14 20
ALFS-25 1 25 -16 20
ALFS-29 1 1/8 29 -18 20
ALFS-32 1 1/4 32 -20 20
ALFS-35 1 3/8 35 -22 20
ALFS-38 1 1/2 38 -24 20
ALFS-41 1 5/8 41 -26 20
ALFS-44 1 3/4 44 -28 20
ALFS-48 1 7/8 48 -30 20
ALFS-51 2 51 -32 20
ALFS-57 2 1/4 57 36 20
ALFS-60 2 2/5 60 -38 20
ALFS-64 2 1/2 64 -40 20
ALFS-67 2 5/8 67 -42 20
ALFS-70 2 3/4 70 -44 20
ALFS-73 2 7/8 73 -46 20
ALFS-76 3 76 -48 20
ALFS-83 3 1/4 83 -52 20
ALFS-89 3 1/2 89 -56 20
ALFS-95 3 3/4 95 -60 20
ALFS-102 4 102 -64 20
ALFS-114 4 1/2 114 -72 20
ALFS-121 4 3/4 121 -76 20
ALFS-127 5 127 -80 20
ALFS-133 5 1/4 133 -84 20
ALFS-140 5 1/2 140 -88 20
ALFS-146 5 3/4 146 -92 20
ALFS-152 6 152 -96 20
