Heat Resistant & Radiant Heat Reflective Sleeve with Velcro

This Heat Resistant & Radiant Heat Reflective Sleeve with Velcro reflects radiant heat from sources such as glowing steel slab, liquid metal pour streams, infrared heaters and other similar sources.
  • Item NO.:

    SEALFS
  • Description

  • Specifications

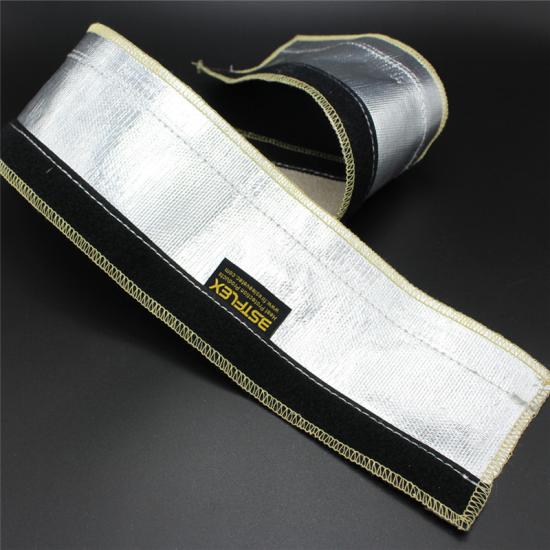

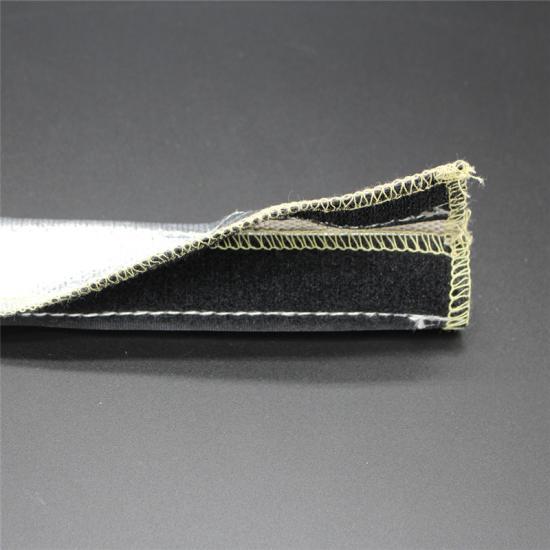

Aluminum Fiberglass Sleeve with Velcro With layers of highly polished aluminum calendared under high pressure onto a high temperature base fabric, and then sewn into a sleeve or with Velcro to result in a removeable sleeve and reflects more then 95% radiant heat. This sleeve is easily wrapped over the wires, cables and hoses, then closed with the velcro.

Melting Point: 600+°C
Working Temp: -50°C to +200°C


Applications
This reflect sleeve provide high heat protection and joining them to create a high temperature heat shield that protects wires, cables, hoses and pipes from radiant and convective heat.

Custom Options
Custom short length upon request
Special bulk packaging to maximize productivity, minimize waste

Size Range
ID 6mm to 150 mm
DATASHEET
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
VALFS-16 5/8 16 -10 50
VALFS-19 3/4 19 -12 50
VALFS-22 7/8 22 -14 50
VALFS-25 1 25 -16 50
VALFS-29 1 1/8 29 -18 50
VALFS-32 1 1/4 32 -20 50
VALFS-35 1 3/8 35 -22 50
VALFS-38 1 1/2 38 -24 50
VALFS-41 1 5/8 41 -26 50
VALFS-44 1 3/4 44 -28 50
VALFS-48 1 7/8 48 -30 50
VALFS-51 2 51 -32 50
VALFS-57 2 1/4 57 36 50
VALFS-60 2 2/5 60 -38 50
VALFS-64 2 1/2 64 -40 50
VALFS-67 2 5/8 67 -42 50
VALFS-70 2 3/4 70 -44 50
VALFS-73 2 7/8 73 -46 50
VALFS-76 3 76 -48 50
VALFS-83 3 1/4 83 -52 50
VALFS-89 3 1/2 89 -56 50
VALFS-95 3 3/4 95 -60 50
VALFS-102 4 102 -64 50
