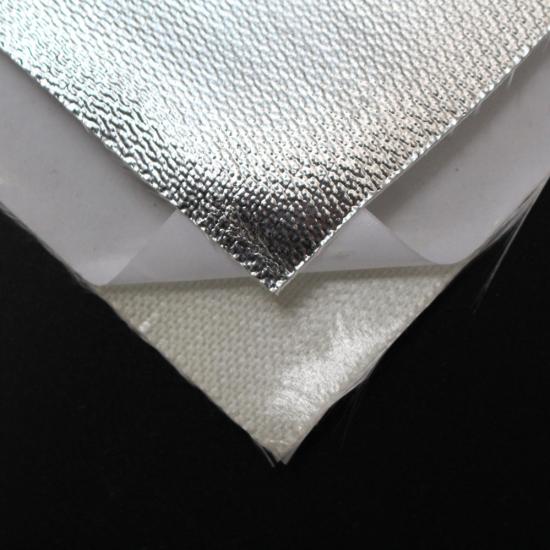

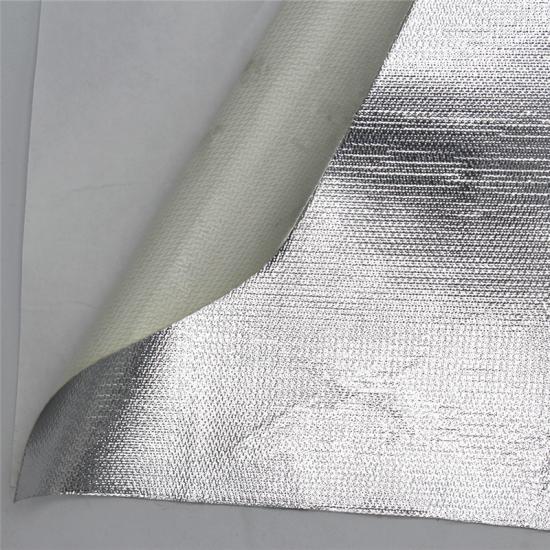

Adhesive Backed Aluminum Silica Heat Shield Barrier

This Adhesive Backed Aluminum Silica Heat Shield Barrier is made from woven silica and aluminum mylar finish and adhesive backed. Custom size upon request. This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
  • Description

  • Specifications

Adhesive Backed Aluminum Silica Heat Shield Barrier made by aluminum and high quality silica fiber, silica fiber resistant higher temperature than fiberglass. This heat barrier solves the problem of heat from engines and exhaust intruding into interiors and components.

Out side layer is a superior reflective aluminized mylar surface, capable of withstanding direct heat up to 1200°F. This adhesive backed heat barrier mat can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to the fuel tank, and has many other applications including floorboards, body panels, and under carpeting.

Excellent protection for painted surfaces
Can be secured with adhesive or fasteners
Easy to cut
Direct Heat Resistance: 1200°F
Radiant Heat Resistance: 2000°F
Part Number Description
321212 12 in × 12 in
321224 12 in × 24 in
321320 12 in × 50 in
321818 18 in × 18 in
322424 24 in × 24 in
322448 24 in × 48 in
322640 26 in × 40 in
323658 36 in × 58 in
324036 40 in × 36 in
324050 40 in × 50 in
324046M 40 in × 164 ft
