Aluminum Silica Thermal Barrier Mat

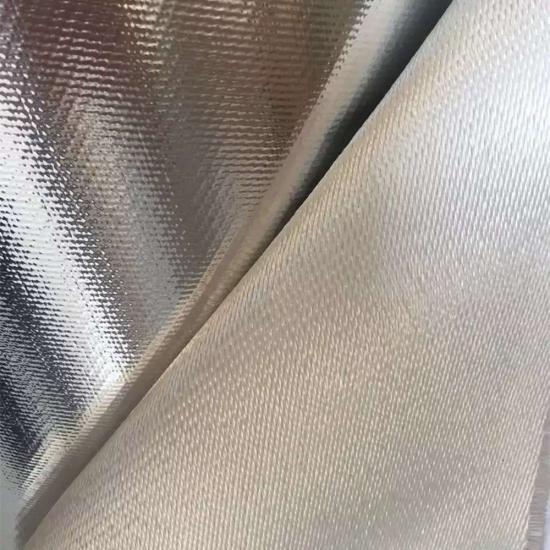

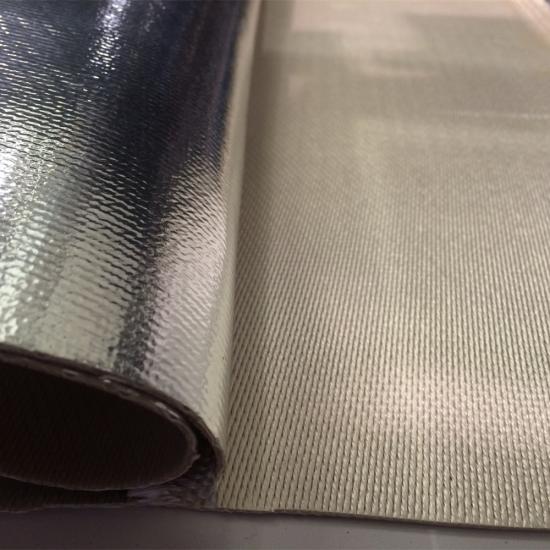

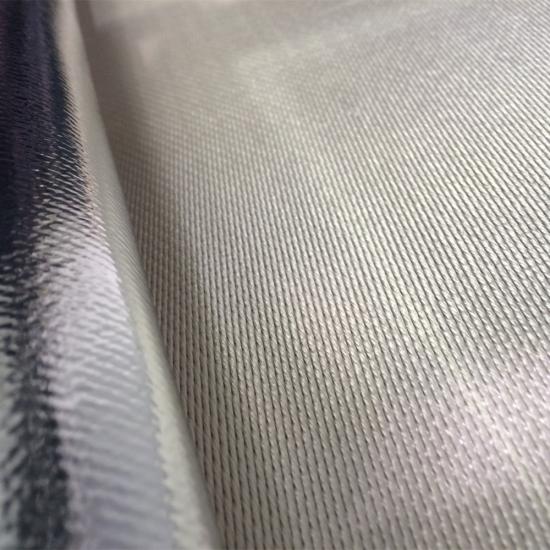

Aluminum Silica Thermal Barrier Mat is made from woven silica and aluminum mylar finish. Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F. This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
  • Description

  • Specifications

Aluminum Silica Thermal Barrier Mat features a thermal barrier on one side made of a superior reflective aluminized mylar surface, capable of withstanding direct heat up to 1200°F. This thermal marrier mat resistant higher temperature than Aluminized Glass Fiber Heat Shield Barrier Mat.

When used in applications with 1 inch of airspace and good airflow, this heat resistant material is capable of reflecting 90% of radiant heat.

Aluminized Heat Screen can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to the fuel tank, and has many other applications including floorboards, body panels, and under carpeting.

Excellent protection for painted surfaces
Can be secured with adhesive or fasteners
Direct Heat Resistance: 1200°F
Radiant Heat Resistance: 2000°F
Reflects up to 90% of radiant heat
Helps shield fire walls, hoods, body panels, floor boards
Part Number Description
281212 12 in × 12 in
281224 12 in × 24 in
281280 12 in × 50 in
281818 18 in × 18 in
282424 24 in × 24 in
282448 24 in × 48 in
282640 26 in × 40 in
283658 36 in × 58 in
284036 40 in × 36 in
284050 40 in × 50 in
284046M 40 in × 164 ft
