96 oz fireblanket Firesleeve with Hook and Loop Velcro Closure

96 oz fireblanket Firesleeve with Hook and Loop Velcro Closure made by 96 oz heavy duty silicone rubber coated fiberglassfire blanket, sewn with velcro. It is the perfect solution this for protecting hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro conditions including weld splatter, molten splash slag and sparks.
  • Item NO.:

    FVFS
  • Description

  • Specifications

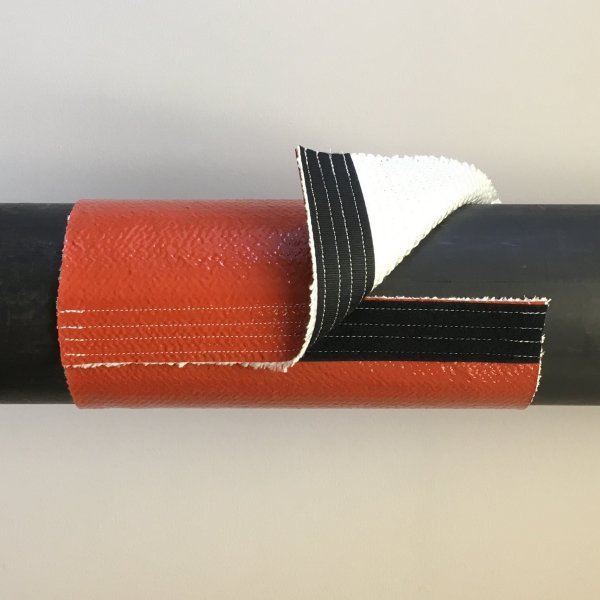

96 oz fireblanket Firesleeve with Hook and Loop Velcro Closure is designed for special large size. Firesleeve has a limitation in that it must be slid over the hose or cable it is protecting. This may be a problem if the hose or cable is already installed and cannot be removed from the machine or equipment. A solution to this problem is a firesleeve with a hook & loop fastener closure manufactured into the sleeve. This allows the firesleeve to be installed on hoses, cables or lines without disassembly.

The material can withstand temperatures of up to 500°F / 260°C continuous exposure; Molten Splash at 2200°F / 1205°C for periods up to 15 minutes and short excursions to 3000°F / 1650°C.
The extra thick formulation of silicone rubber from ozone, UV and light duty abrasion.

Applications
It is the perfect solution this for protecting hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro conditions including weld splatter, molten splash slag and sparks.

Custom Options
Special bulk packaging to maximize productivity, minimize waste
Hook & Loop Closure
Colors (Blue, Green, Yellow, Black, Grey, Red)
Custom printing layline (logo, brand, part number, etc.)

Size Range

Inside diameter 20mm to 350mm.

Datasheet
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
FVFS-19 3/4 19 -12 20
FVFS-22 7/8 22 -14 20
FVFS-25 1 25 -16 20
FVFS-29 1 1/8 29 -18 20
FVFS-32 1 1/4 32 -20 20
FVFS-35 1 3/8 35 -22 20
FVFS-38 1 1/2 38 -24 20
FVFS-41 1 5/8 41 -26 20
FVFS-44 1 3/4 44 -28 20
FVFS-48 1 7/8 48 -30 20
FVFS-51 2 51 -32 20
FVFS-57 2 1/4 57 36 20
FVFS-60 2 2/5 60 -38 20
FVFS-64 2 1/2 64 -40 20
FVFS-67 2 5/8 67 -42 20
FVFS-70 2 3/4 70 -44 20
FVFS-73 2 7/8 73 -46 20
FVFS-76 3 76 -48 20
FVFS-83 3 1/4 83 -52 20
FVFS-89 3 1/2 89 -56 20
FVFS-95 3 3/4 95 -60 20
FVFS-102 4 102 -64 20
FVFS-114 4 1/2 114 -72 20
FVFS-121 4 3/4 121 -76 20
FVFS-127 5 127 -80 20
FVFS-133 5 1/4 133 -84 20
FVFS-140 5 1/2 140 -88 20
FVFS-146 5 3/4 146 -92 20
FVFS-152 6 152 -96 20
FVFS-159 6 1/4 159 -100 20
FVFS-165 6 1/2 165 -104 20
FVFS-171 6 3/4 171 -108 20
FVFS-178 7 178 -112 20
FVFS-184 7 1/4 184 -116 20
FVFS-191 7 1/2 191 -120 20
FVFS-197 7 3/4 197 -124 20
FVFS-203 8 203 -128 20
FVFS-210 8 1/4 210 -132 20
FVFS-216 8 1/2 216 -136 20
FVFS-222 8 3/4 222 -140 20
FVFS-229 9 229 -144 20
FVFS-235 9 1/4 235 -148 20
FVFS-241 9 1/2 241 -152 20
FVFS-248 9 3/4 248 -156 20
FVFS-254 10 254 -160 20
FVFS-260 10 1/4 260 -164 20
FVFS-267 10 1/2 267 -168 20
FVFS-273 10 3/4 273 -172 20
FVFS-279 11 279 -176 20
FVFS-286 11 1/4 286 -180 20
FVFS-292 11 1/2 292 -184 20
FVFS-298 11 3/4 298 -188 20
FVFS-305 12 305 -192 20
