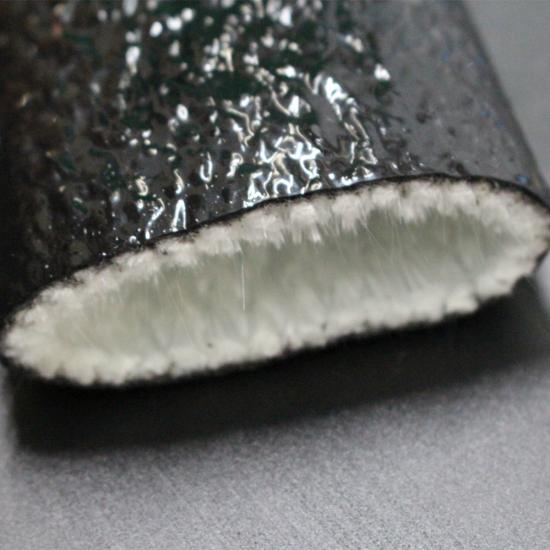

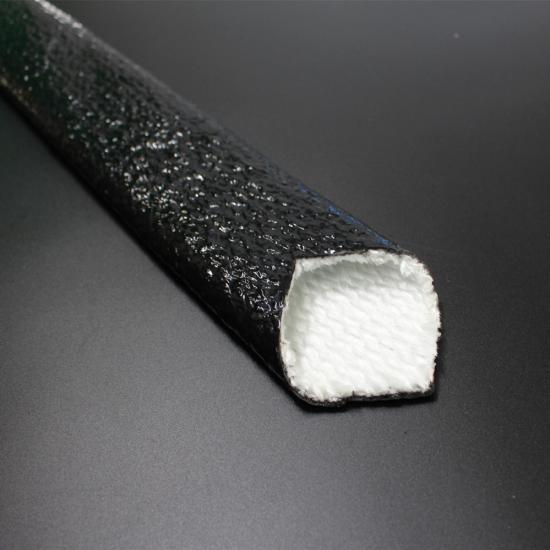

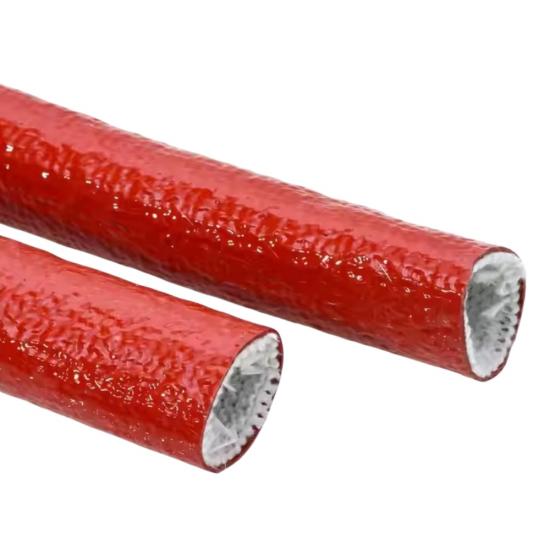

Silicone Texturized Glass Fiber Fire Protection Sleeve

Silicone Texturized Glass Fiber Fire Protection Sleeve have special fibergkass, and have excellent elasticity and are great for protecting or bundling hoses, tubes and cables in a variety of hostile environments.
  • Item NO.:

    HFRS
  • Description

  • Specifications

Silicone Texturized Glass Fiber Fire Protection Sleeve is made of braided high quality texturized fiberglass yarns in a flexible substrate, it is then coated with a high-grade, fully-cured silicone rubber. Withstands intense radiant heat and flame continously up to 500 F or 3000 F for up to 30 seconds. Immediately sheds splash and withstands repeated exposure to molten steel, aluminum and glass.

Application
Resistant to hydraulic fluids, lubricating oils, and fuels, firesleeve insulates against energy loss in piping and hosing, protects employees from burns and provides flame and molten splash resistant protection for wires, hoses, and cables.

Features
Temperature range: -65° to +500° F
Resistant to hydraulic fluids and lubricating oils
Compounded silicone rubber coating over fiberglass
100% asbestos-free
Supplied in 5-100m lengths (continuous)
Iron oxide red color standard color
Slides easily over hose and expands to go over fittings

Size Range
1/4" (6.4mm) through 6" (152.4mm)

Datasheet
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
HFRS-6 1/4 6 -4 20
HFRS-8 5/16 8 -5 20
HFRS-10 3/8 10 -6 20
HFRS-11 7/16 11 -7 20
HFRS-13 1/2 13 -8 20
HFRS-16 5/8 16 -10 20
HFRS-19 3/4 19 -12 20
HFRS-22 7/8 22 -14 20
HFRS-25 1 25 -16 20
HFRS-29 1 1/8 29 -18 20
HFRS-32 1 1/4 32 -20 20
HFRS-35 1 3/8 35 -22 20
HFRS-38 1 1/2 38 -24 20
HFRS-41 1 5/8 41 -26 20
HFRS-44 1 3/4 44 -28 20
HFRS-48 1 7/8 48 -30 20
HFRS-51 2 51 -32 20
HFRS-57 2 1/4 57 36 20
HFRS-60 2 2/5 60 -38 20
HFRS-64 2 1/2 64 -40 20
HFRS-67 2 5/8 67 -42 20
HFRS-70 2 3/4 70 -44 20
HFRS-73 2 7/8 73 -46 20
HFRS-76 3 76 -48 20
HFRS-83 3 1/4 83 -52 20
HFRS-89 3 1/2 89 -56 20
HFRS-95 3 3/4 95 -60 20
HFRS-102 4 102 -64 20
HFRS-114 4 1/2 114 -72 20
HFRS-121 4 3/4 121 -76 20
HFRS-127 5 127 -80 20
HFRS-152 6 152 -96 20
