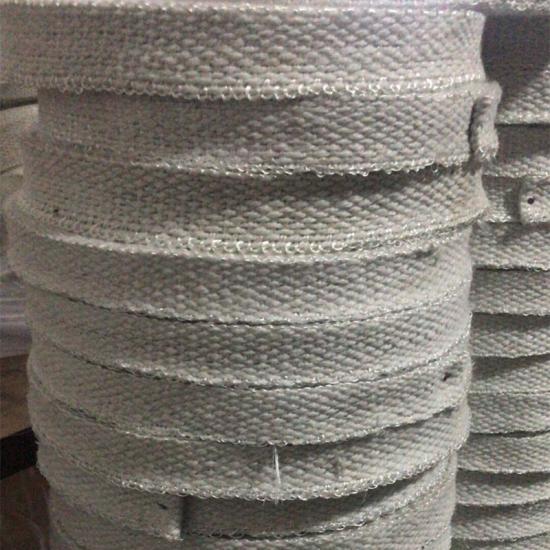

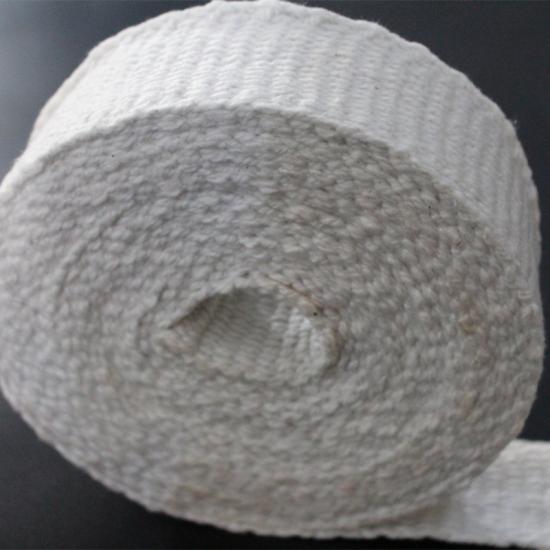

Thermal Insulation Ceramic Fiber Tape

Thermal Insulation Ceramic Fiber Tape is made of ceramic woven yarns with fiberglass yarn or steel wire reinforcement. Noted for high temperature resistant up to 1050 °C, ceramic fiber textiles feature excellent properties of lightweight, low thermal conductivity and chemical stability resisting attack from most corrosive agents. They are widely used in thermal insulation industry.
  • Description

  • Specifications

Thermal Insulation Ceramic Fiber Tape supports the highest continuous operating temperature at 2300°F (1260°C).  Ceramic fiber tape possesses excellent chemical stability as well as strong corrosion and thermal shock resistance. Glass or Inconel inserts are added for increased strength and durability. Ceramic fiber tapes are available in both plain and drop warp weaves.

Main Characteristics and Properties
Low thermal conductivity, low heat storage, high temperature stable, thermal shock resistant
Fire and flame proof
Chemical resistant, compatible with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalies)
Lightweight, woven texture with excellent handling strength

Applications
Expansion joint fabric
Insulation wrapping material for pipes, wire, cable, exhaust, and other geometric shapes
Protective insulation covers, curtains, blankets, and welding curtains
High temperature seals, gaskets, and tadpole gaskets

Thickness (mm) Width (mm) Reinforcement Working Temp.
2 to 5 20-500 Fiberglass 650°C
2 to 5 20-500 Steel wire 1050°C

DATASHEET
Part number Width Length
mm m
CRT-25 25 30
CRT-38 38 30
CRT-50 50 30
CRT-75 75 30
CRT-100 100 30
CRT-150 150 30
CRT-200 200 30
