High Temperature Aluminum Foil Glass Cloth Tape

High Temperature Aluminum Foil Glass Cloth Tape is used to protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions.
  • Description

  • Specifications

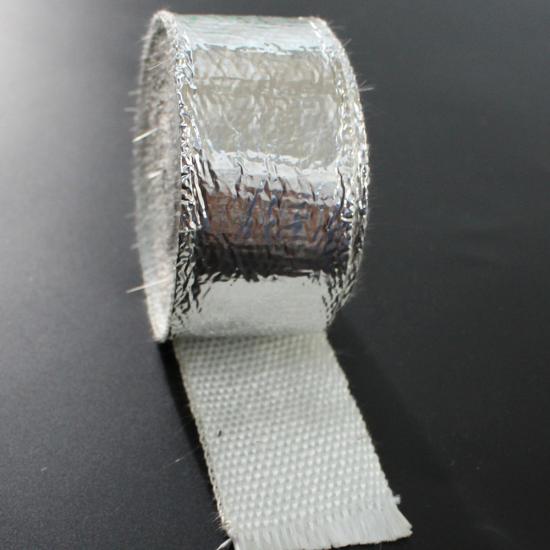

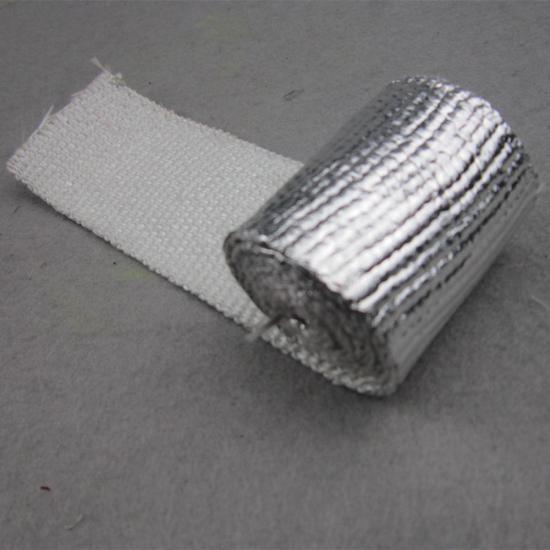

High Temperature Aluminum Foil Glass Cloth Tape is made of bulked glass fiber with aluminium foil. It has outstanding reflectivity to the heat and ray.Protects from radiant heat by reflecting 90% of the heat that contacts its surface. The aluminum layers will not delaminate from the glassfiber, even under the most extreme heat conditions.

The tape is overlaped by 50% when wraping, which provides the entire assembly with stability.  Safety wire, clamps, ties or pure silicone tape can be used to secure the tape in place after installation.

Excellent rediant heat reflection provides good protection to the hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe, which are working under high heat conditions; Low heat conductivity to keep the underlying pipelines cool. It is widely used as an excellent automotive under-the-hood protection.

Technical Datasheet
Material Fiberglass, aluminum
Working temperature -40 - +260
Flammability VW-1
Melting point +537
Standard Color Silver
Standard thickness 1.5 mm
MOQ 100 meter each size
Cutting tool Scissors

DATASHEET
Part number Width Length
mm m
FGT-AL-25 25 30
FGT-AL-38 38 30
FGT-AL-50 50 30
FGT-AL-75 75 30
FGT-AL-100 100 30
FGT-AL-125 125 30
FGT-AL-150 150 30
FGT-AL-200 200 30
