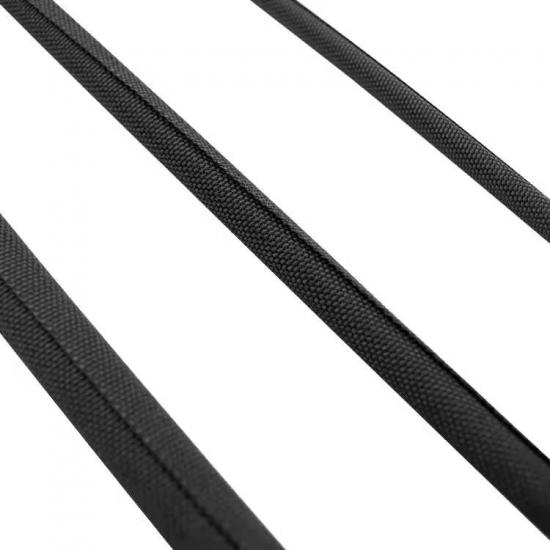

Self-closing Flame-retardent Polyester Sleeving

The Self-closing Flame-retardent Polyester Sleeving is mainly used in wiring of automobile, military industry, shipping, communications, optical cable and other industries.
  • Item NO.:

    PET
  • Description

  • Specifications

Self-closing Flame-retardent Polyester Sleeving is a non-expandable sleeving woven from monofilament and multifilament polyester yarns. The degree of edge overlap reaches 25%. It is lightweight, cost-effective and highly abrasion resistance, the split open design allows easy install on the cable harness which has been assembled.

Application:
Most commonly used on wire harnesses, cable assemblies, to provide a tough, durable protection in automotive, telecom, automatic equipment, railways and panel boards.

Technical data:
Material: Polyester monofilament and multifilament
Operating range: -50 ~+150 °C
Melt point:240± 10°C
Flammability: V0
Standard colours : Black
Cutting tool: Hot knife

Part No. Nominal Dia. Max. Bundle Dia. Packingm/spool
KK005 5.0mm 6.0mm 100m
KK008 8.0mm 9.0mm 100m
KK010 10.0mm 11.0mm 100m
KK013 13.0mm 14.0 mm 50m
KK016 16.0mm 17.0 mm 25m
KK019 19.0mm 20.0 mm 25m
KK025 25.0mm 27.0 mm 25m
KK029 29.0mm 31.0 mm 25m
KK032 32.0mm 34.0 mm 25m
KK038 38.0mm 40.0 mm 25m
KK050 50.0mm 52.0mm 25m
