PET Polyester Expandable Braided Sleeving

PET Polyester Expandable Braided Sleeving is made of V0 or V2 grade polyester monofilament. It features a durable abrasion resistance, even in different industrial applications.
  • Item NO.:

    PET
  • Description

  • Specifications

Description:

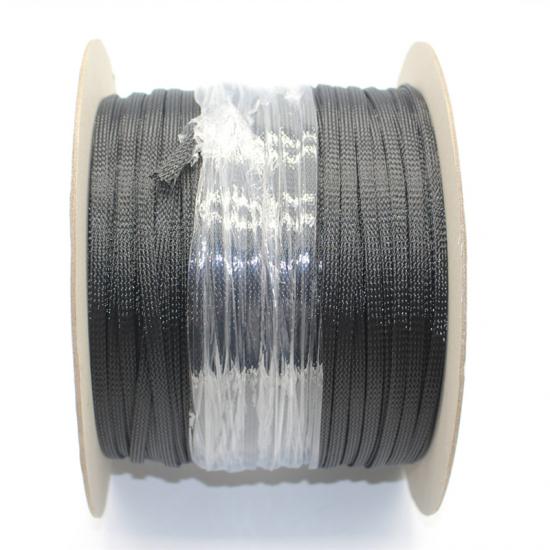

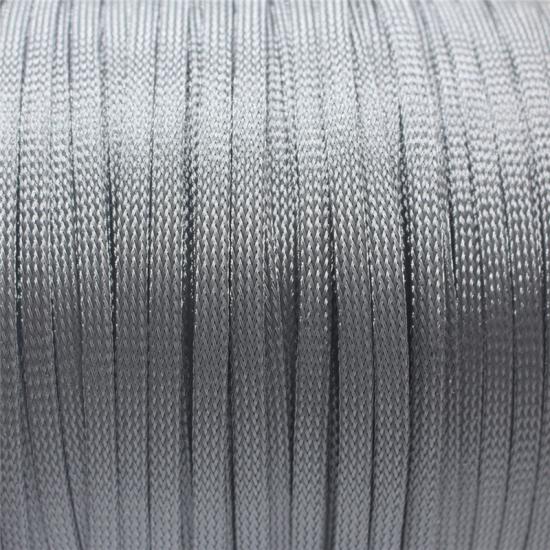

PET Polyester Expandable Braided Sleeving is made of V0 or V2 grade polyester monofilament. It features a durable abrasion resistance, even in different industrial applications. The open weave design allows for easy installation on bundles of hoses and cables, even when the hoses and cables are bulky or have large connectors. Once fully expanded, the polyester sleeving is 1.5 times larger than the initial dimensions. It is commonly used to cover cables, wire harnesses, tubes, and industrial hoses that require additional protection.

Application:
It’s used to cover cables, wire harnesses, tubes, industrial hoses where is required an additional protection.

Technical data:
Material: Polyester
Operating range: -50°C - +150°C
Melt point: 240±10°C
Flammability: UL VW-1
Standard colors: black
Cutting tool: hot knife
Part No. Nominal size (W) Expanded Range Packing (L)
Inch mm Min.(I) Max.(O) Standard spool
mm mm
PET003 1/8'' 3 1 6 1000 m
PET006 1/4'' 6 3 9 500 m
PET008 5/16'' 8 5 16 350 m
PET010 3/8'' 10 7 19 350 m
PET012 1/2'' 12 8 24 350 m
PET016 5/8'' 16 10 27 250 m
PET019 3/4" 19 14 30 200 m
PET025 1" 25 18 35 200 m
PET032 1-1/4" 32 20 50 150 m
PET038 1-1/2" 38 30 60 100 m
PET045 1-3/4" 45 35 75 100 m
PET050 2" 50 40 80 100 m
PET064 2-1/2" 64 45 105 100 m
