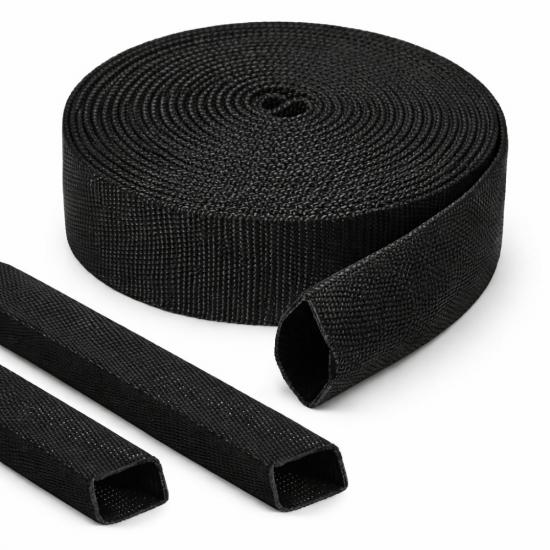

Our polyester hose sleeve is designed to provide reliable abrasion, wear, and external damage protection for hydraulic hoses, industrial hoses, and cable assemblies. Manufactured from high-tenacity polyester yarns, this sleeve offers an excellent balance of durability, flexibility, and cost-effectiveness for demanding industrial environments.
With a flat width range from 10 mm to 500 mm, our polyester hose sleeve is suitable for both small-diameter hoses and large industrial hose bundles. It is widely used in construction machinery, agriculture equipment, mining systems, and general industrial applications where hose safety and service life are critical.
What Is a Polyester Hose Sleeve?
A polyester hose sleeve is a woven protective sleeve installed over hoses or cables to reduce damage caused by abrasion, friction, UV exposure, and external impacts. Compared with metal springs or rigid protectors, polyester sleeves remain lightweight and flexible while offering excellent mechanical strength.
Thanks to its woven structure, the sleeve allows hoses to bend naturally without restricting movement, making it ideal for dynamic hydraulic systems. Polyester material also provides good resistance to oils, moisture, and weathering, ensuring stable performance in both indoor and outdoor environments.
Key Features of Our Polyester Hose Sleeve
-
High abrasion resistance for extended hose service life
-
Lightweight and flexible woven construction
-
Excellent resistance to UV, moisture, and environmental exposure
-
Easy installation over existing hoses or cable assemblies
-
Cost-effective alternative to metal or rigid hose protectors
-
Optional flame-retardant treatment available
-
Available in multiple colors for hose identification and safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | High-tenacity polyester |
| Construction | Woven sleeve |
| Flat Width Range | 10 mm – 500 mm |
| Operating Temperature | -40°C to +150°C |
| Standard Colors | Black, orange |
| Custom Colors | Available upon request |
| Flame Retardant | Optional |
| UV Resistance | Yes |
| OEM / Customization | Supported |
Flat width is measured when the sleeve is laid flat. The correct size should be selected based on hose outer diameter and installation requirements.
Applications of Polyester Hose Sleeve
Our polyester hose sleeve is widely used across various industries, including:
-
Hydraulic hose protection in construction machinery
-
Hose and cable management for agricultural equipment
-
Abrasion protection in mining and quarrying systems
-
Industrial machinery hose assemblies
-
Automotive and off-road vehicle hose routing
-
Bundling and protection of cables and pipes
By reducing hose wear and accidental damage, the sleeve helps minimize downtime, maintenance costs, and safety risks.
Polyester Hose Sleeve vs Other Hose Protection Solutions
Compared with nylon hose sleeves, polyester sleeves offer improved UV resistance and better performance in outdoor environments.
Compared with fiberglass sleeves, polyester hose sleeves are more flexible, easier to install, and more economical for general abrasion protection.
Compared with steel spring guards, polyester sleeves do not scratch hose surfaces and provide continuous coverage without adding significant weight.
This makes polyester hose sleeves an ideal all-around solution for most industrial hose protection needs.
Why Choose Our Polyester Hose Sleeve?

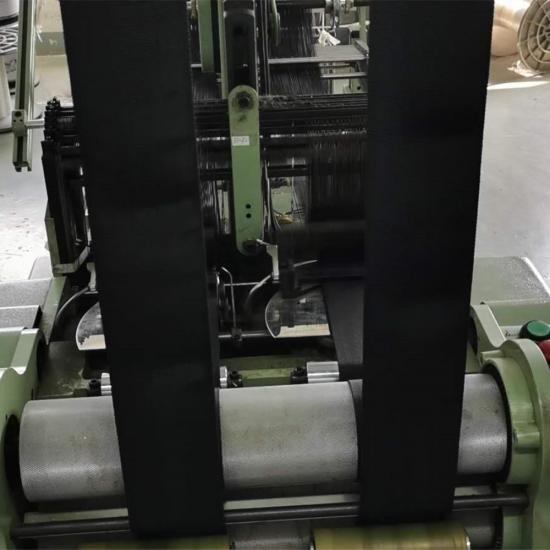

As a professional manufacturer, we control the entire production process from yarn selection to weaving and finishing. Our factory advantages include:
-
Stable quality control and consistent weaving density
-
Wide flat width range from 10 mm to 500 mm
-
Custom colors, packaging, and labeling available
-
OEM and private label support for global distributors
-
Fast production lead time and export experience
We work closely with customers to ensure the sleeve specifications match real-world operating conditions.
Installation & Size Selection Guide
To choose the correct polyester hose sleeve size:
-
Measure the outer diameter of the hose or hose bundle
-
Select a flat width that allows easy installation without excessive looseness
-
Consider hose movement, bending radius, and environmental exposure
Our technical team can assist with size selection to ensure optimal protection and performance.
Frequently Asked Questions (FAQs)
Q1: Is polyester hose sleeve suitable for outdoor use?
Yes, polyester material provides good UV and weather resistance, making it suitable for outdoor applications.
Q2: Can the sleeve be flame retardant?
Flame-retardant treatment is available upon request for specific applications.
Q3: What flat width should I choose?
Flat width depends on hose outer diameter. Our available range is 10 mm to 500 mm, covering most industrial requirements.
Q4: Can you provide custom colors or branding?
Yes, we support custom colors, packaging, and OEM branding.
Q5: Is this sleeve reusable?
In many applications, the sleeve can be reused if removed carefully and remains undamaged.
Q6: Do you supply samples before bulk orders?
Samples are available for evaluation before mass production.
Contact Us for Polyester Hose Sleeve Solutions
If you are looking for a reliable polyester hose sleeve manufacturer with flexible sizing and customization options, contact us today. Our team is ready to support your hose protection requirements with professional solutions and stable supply.
