Proper installation of muffler packing is essential for achieving optimal exhaust noise reduction, stable backpressure, and long-term durability of the muffler. Whether you are fabricating a new exhaust system or maintaining an existing one, the correct packing method ensures the muffler performs efficiently under high temperature, vibration, and continuous gas flow.

This guide explains the recommended installation process, key safety considerations, maintenance intervals, and how premium packing materials from BSTFLEX help extend the service life of exhaust systems in automotive, motorcycle, and industrial applications.

Understanding the Role of Muffler Packing

Muffler packing is the insulation and acoustic-absorbing material inside the muffler chamber. Its primary purposes include:

• Reducing exhaust noise by absorbing sound waves

• Maintaining consistent internal backpressure

• Protecting the muffler shell from excessive heat

• Minimizing vibration and preventing internal metal-on-metal contact

Incorrect installation or degraded packing leads to higher noise levels, loss of performance, and premature muffler failure.

Step-by-Step Guide to Installing Muffler Packing

Step 1: Prepare and Clean the Muffler Body

Before packing installation, ensure the muffler interior is clean and free of carbon deposits.

Procedure

• Remove old packing material completely

• Inspect for cracks or heat damage

• Clean internal pipes and perforated cores

• Dry any moisture to prevent corrosion

A clean surface ensures the new packing performs at maximum efficiency.

Step 2: Select the Correct Muffler Packing Material

Choosing the right material depends on exhaust temperature, vibration level, and application type:

• Fiberglass muffler packing – standard vehicles, moderate heat

• Basalt fiber packing – higher heat resistance and better sound absorption

• Silica fiber packing – high-performance and racing applications

• Ceramic fiber packing – extreme temperature environments

• Stainless steel wool – heavy-duty, high vibration, or diesel exhaust systems

BSTFLEX provides all major high-temperature muffler packing materials with customized density and thickness options.

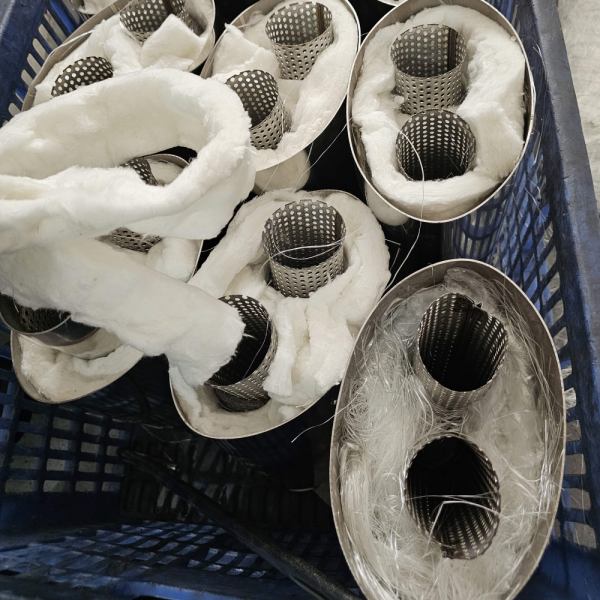

Step 3: Wrap the Perforated Core

The perforated tube is the main channel for exhaust flow and must be wrapped evenly.

Key points

• Wrap the packing tightly enough to hold shape but not overly compressed

• Align fibers in the same direction for stable acoustic performance

• Use stainless steel wire or high-temperature tape to secure the material, if required

This step ensures consistent density and prevents blow-out during engine operation.

Step 4: Fill the Outer Chamber

Once the perforated core is wrapped, fill the remaining space inside the muffler body.

Methods

• Hand-fill for small motorcycle mufflers

• Roll-and-insert method for longer automotive mufflers

• Layered filling for industrial or generator exhaust systems

Maintaining uniform density prevents hotspots and ensures stable noise reduction.

Step 5: Close and Seal the Muffler

After packing is installed:

• Reassemble the muffler shell

• Weld or clamp components securely

• Check for alignment, vibration points, and potential leak areas

A properly sealed muffler enhances durability and prevents packing loss.

Maintenance and Replacement Recommendations

Muffler packing is a consumable component in any exhaust system. Its service life depends on temperature, riding/driving conditions, and material type.

Typical replacement intervals

• Fiberglass – every 6 to 12 months

• Basalt fiber – every 12 to 18 months

• Silica and ceramic fiber – 18 months to 2 years

• Stainless steel wool – can last several years in heavy-duty systems

Signs that muffler packing needs replacement:

• Noticeable increase in exhaust noise

• Higher exhaust temperature

• Rattling or vibration sound

• Reduced muffler weight due to packing burn-out

Regular inspection ensures both performance and safety.

How BSTFLEX Packing Materials Improve Installation Results

BSTFLEX provides high-temperature muffler packing materials engineered for long-term reliability:

• High temperature ratings up to 1200°C depending on the fiber type

• Uniform density for consistent acoustic absorption

• Low shrinkage under continuous thermal cycling

• Excellent vibration and blow-out resistance

• Available in mats, rolls, rope forms, or custom-cut pieces

Our materials are widely used in automotive exhausts, motorcycles, ATVs, power generators, industrial engines, and marine applications.

Installing muffler packing correctly is essential for achieving stable performance, quieter operation, and longer exhaust system life. With the right material selection and proper installation techniques, your exhaust system will maintain optimal efficiency under demanding conditions.

For fabrication workshops, OEM manufacturers, or repair professionals needing high-quality muffler packing materials, BSTFLEX provides reliable solutions designed for modern high-temperature exhaust systems.
