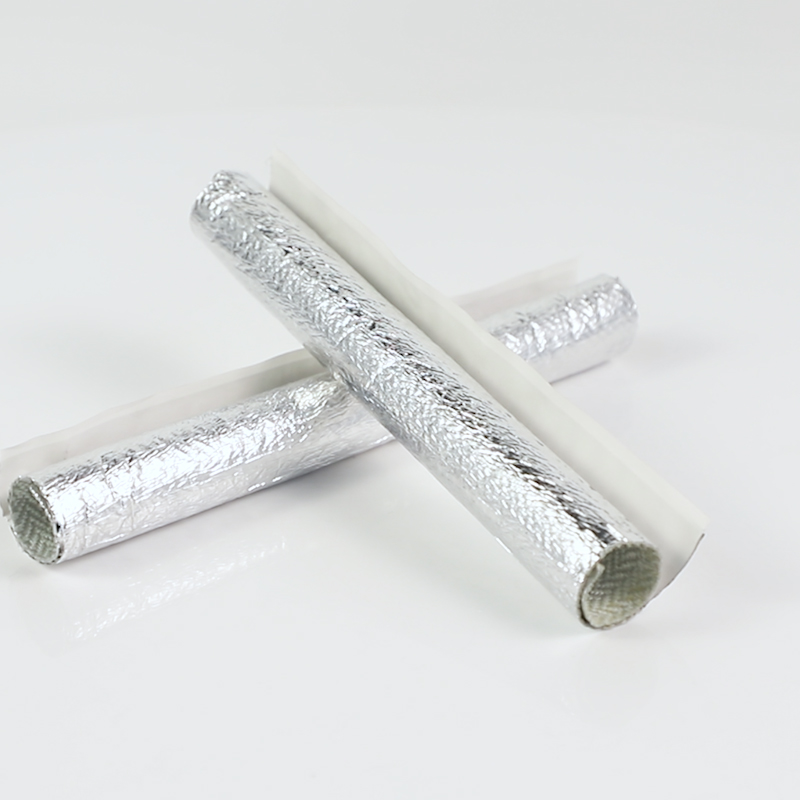

Aluminum fiberglass self-closing wrap is a self-wrapping reflective sleeve, and made by fiberglass, polyester, aluminum. The split design makes it easy to install over cable harnesses. It is commonly used to protect bundles of wires and cables, hoses, pipes, tubing, and more. Widely used in automotive wiring harness protection, high voltage and high temperature environments.
The Aluminum is used to reflects more than 95% radiant heat energy up to 2000 deg Fahrenheit.
Application:
It is widely used in automotive wiring harness protection, and also be applied to high voltage and high temperature environments.
The unique woven structure imparts a level of flexibility not found in other reflective products. It also allows the product to maintain a circular profile when flexed.
Aluminum fiberglass self-closing wrap Technical data:
Material :aluminum foil+ fiberglass+ polyester
Working temperature: -40℃~+150℃
Convective Heat Protection up to 200ºC
Color:natural
Thermal insulation:Test method refer to SAE J2302
Heat insulation performance:≥100℃
Oil resistance: good
Overlap:25% (supplied smaller than nominal size and opens up to the nominal size)
Cutting tool: cutting machine/scissors
