Q: How do I determine what size turbo blanket I need for my turbocharger?

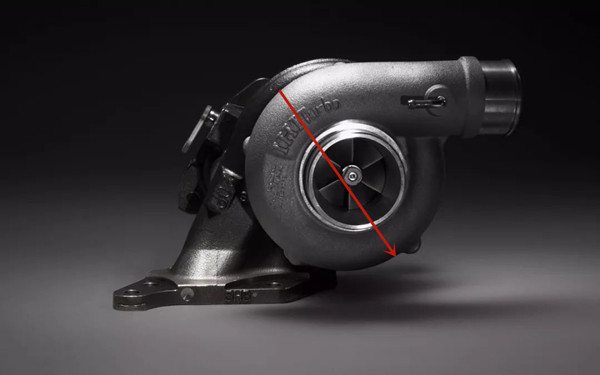

A: Your turbo blanket size selection should be based on the outer diameter of the casing of your turbocharger's "hot side" (which houses the exhaust-fed impeller). Therefore, you should either look up or manually measure the diameter of your turbocharger's hot side, as described in the above figure, and purchase the appropriately-sized turbo blanket. Our turbo blankets are tailored to fit perfectly turbochargers with external wastegates without any modification. If your turbocharger has an internal wastegate, however, you may need to make a simple modification to allow it to fit appropriately. (e.g., cut away a portion of the turbo blanket)
Special size can be made upon request.

Please use the following table to determine the appropriate size for your turbo blanket:

HOT SIDE DIAMETER	TURBO BLANKET SIZE
5 TO 6 INCH	T3 TURBO BLANKET
6 TO 7.5 INCH	T3/T4 TURBO BLANKET
7.5 TO 8.5 INCH	LARGE T4 TURBO BLANKET
8.5 TO 10.5 INCH	T6 TURBO BLANKET

Q: What are the benefts of using a turbo blanket?
A: There are many benefits of using a turbo blanket. Here are just a few:

First, a turbo blanket protects components within your engine bay. The turbo blanket protect plastic and rubber hoses and electrical wiring, as well as painted surfaces, such as the engine bay and the surface of the hood from heat produced by your turbocharger. Also, it prevents areas of localized high temperature from damaging the engine itself.

Second, a turbo blanket improves the performance of your turbocharger by keeping "the hot side hot." In keeping the exhaust gases within the turbocharger hot, turbocharger efficiency is improved.

Third, a turbo blanket improves the performance of your turbocharger by keeping "the cool side cool."

Q: Would you recommend installing a turbo blanket / heat wrap over ceramic coating?
A: Yes. Our turbo blankets and heat wraps provide much more effective than ceramic coating in isolating exhaust heat and reducing under hood temperatures.And if you already have ceramic coating, the additive effect of using the turbo blanket or heat wrap would also increase the beneficial effects.

Q:What is the life expectancy of an installed turbo blanket or heat wrap?
A: If cared for appropriately and installed correctly, turbo blankets and heat wraps will likely outlive the vehicle in which they're installed.
If you want more life expectancy, we suggest use best materials. We have different materials and different sewn thread with different temperature resistance.

Q: If you can make our design LOGO on the turbo blanket?

A: Yes. We can sewn your LOGO on the blanket, or fabric tag and metal LOGO tag.

Q: If you can make different heat shields and with our package?

A: Yes, we make all heat shields for automotive, and we can make the special package for your bluk orders. Also we can make OEM.
