Stainless Exhaust Heat Shield Material Guide (304 vs 321 vs 316 vs 430)

Stainless steel is one of the most widely used materials for exhaust heat shields because it offers a strong balance of heat resistance, durability, cost, and formability. This guide explains how to choose the right stainless grade for your application (turbo, downpipe, catalytic converter, manifold), how heat shield structure impacts performance, and what information to prepare for a fast OEM quotation.

BSTFLEX manufactures a full range of exhaust heat shield solutions (heat shield sheets, formed panels, embossed shields, barrier mats, sleeves, tapes, turbo blankets and more). If you need a ready-to-buy solution or a custom build, start here: Explore Exhaust Heat Shield Series .

1) Where Stainless Exhaust Heat Shields Are Used

Stainless heat shields are commonly used anywhere you need to reduce radiant heat from exhaust components and protect nearby wiring, hoses, sensors, plastic parts, and body panels. Typical heat zones include:

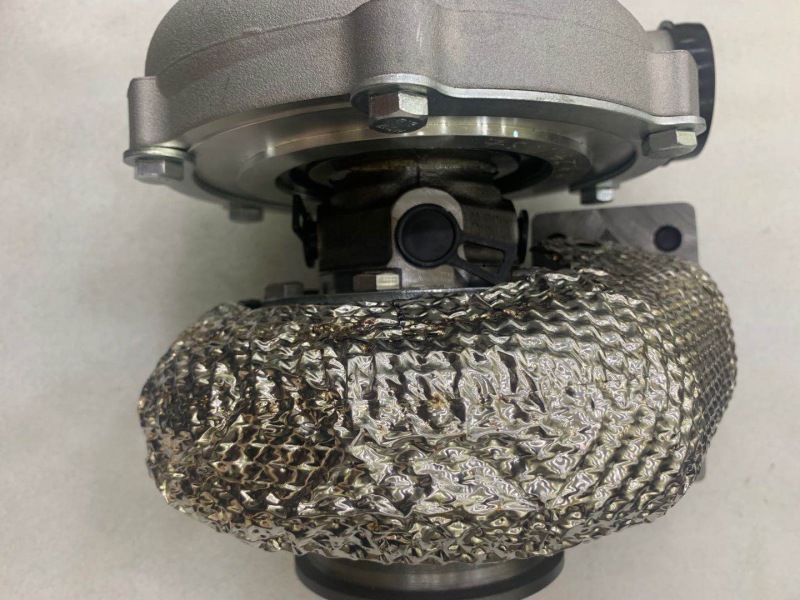

• Turbocharger hot-side: high radiant heat + thermal cycling
• Downpipe: tight packaging, sustained temperature during operation
• Catalytic converter: prolonged heat soak and high surface temperature
• Exhaust manifold: frequent heat-up/cool-down cycles and vibration
• Underbody heat management: floor, tunnel, fuel/brake line protection

2) What Actually Reduces Heat: Air Gap, Surface Design, and Multi-Layer Builds

Air Gap (Most Important for Radiant Heat)

For radiant heat control, creating and maintaining a stable air gap between the heat source and the shield is often the single biggest factor in performance. Standoffs, brackets, or embossed patterns help keep the gap consistent under vibration.

Embossed / Dimpled Panels

Embossing increases stiffness and helps prevent the panel from collapsing into the hot component. It can also reduce buzz/rattle and improve durability by distributing vibration loads.

Single-Layer vs Multi-Layer (Insulation-Backed) Heat Shields

A single stainless sheet can reflect and block radiant heat. For more demanding zones, a multi-layer heat shield (stainless facing + insulation core + optional backing) can further reduce heat transfer where space allows.

3) Stainless Grade Selection (Buyer Decision Logic)

Stainless selection is mainly about temperature severity, thermal cycling, corrosion environment (road salt, marine, chemicals), and required formability for stamped or formed shields.

If your application regularly pushes beyond typical stainless shield limits, consider nickel alloys (e.g., Alloy 625) for the most severe turbo/downpipe heat zones: Alloy 625 (Inconel 625) Heat Shield .

4) Stainless Heat Shield Product Forms (What You Can Source)

• Heat shield sheets / barrier sheets: flat sheets or custom-cut patterns
• Formed / stamped panels: shields built to match brackets and mounting geometry
• Embossed panels: dimple patterns for stiffness and air gap stability
• Insulation-backed barriers: stainless facing + insulation core for higher heat reduction
• Heat shield sleeves / wraps / tapes: protective solutions for pipes, hoses, or localized zones

5) Buyer Checklist: What to Send for a Fast Quote

• Application location: turbo / downpipe / catalytic converter / manifold / underbody
• Available space and mounting constraints (photos are acceptable)
• Target protected area dimensions and preferred coverage
• Preferred build: sheet / formed panel / embossed / insulation-backed multi-layer
• Target quantity and project stage (prototype or mass production)
• Drawings/CAD (if available) and installation temperature notes (if available)

Contact BSTFLEX (Send Drawing for Quote)

FAQ

Which stainless grade is best for an exhaust heat shield?

For many exhaust applications, 304 is a cost-effective choice. For higher heat and thermal cycling (especially near turbo/downpipe), 321 is commonly chosen. If corrosion resistance is the priority (road salt or marine exposure), 316 may be preferred.

Does embossing improve heat shielding performance?

Embossing primarily improves stiffness and helps maintain an air gap under vibration. Because a stable air gap is critical for radiant heat control, embossed designs can improve real-world performance and durability.

Single-layer vs insulation-backed heat shield: how do I choose?

Single-layer stainless shields work well when space is limited and heat levels are moderate. Insulation-backed multi-layer shields are used when you need higher heat reduction and have enough packaging space to add an insulation core.

What information do you need to quote a stainless heat shield?

Share the application location, dimensions, preferred stainless grade (if specified), target quantity, and any drawings/photos. If you have temperature data or a target surface temperature, include it for faster material and structure recommendations.
