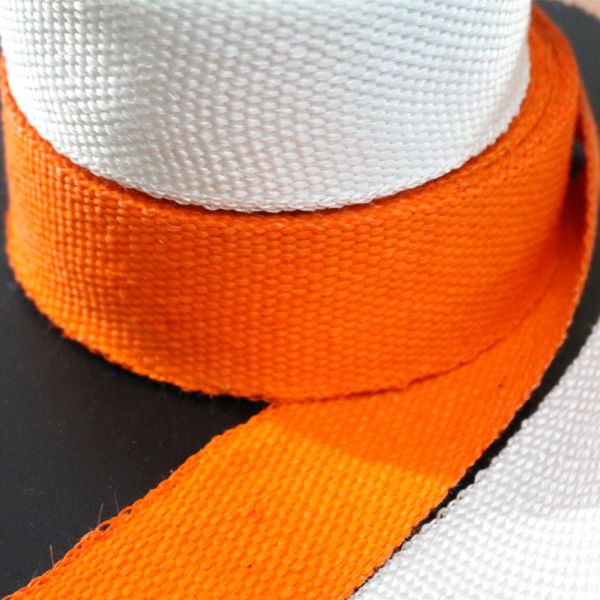

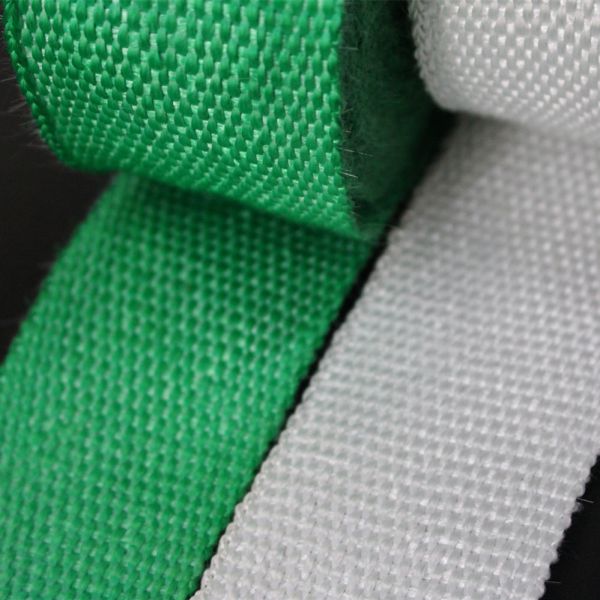

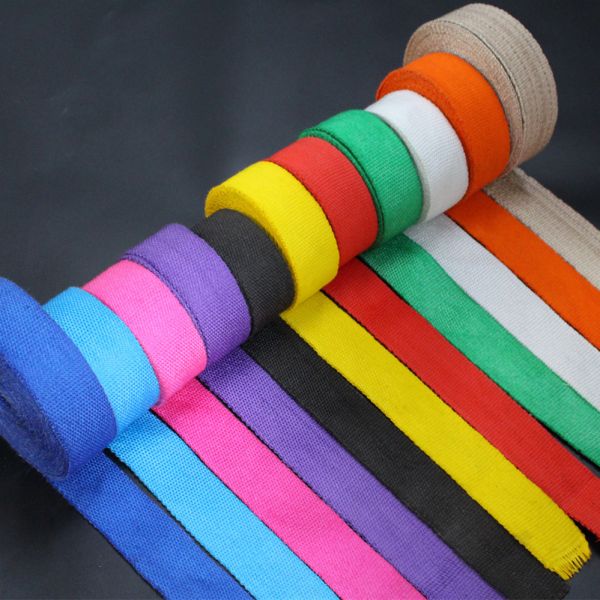

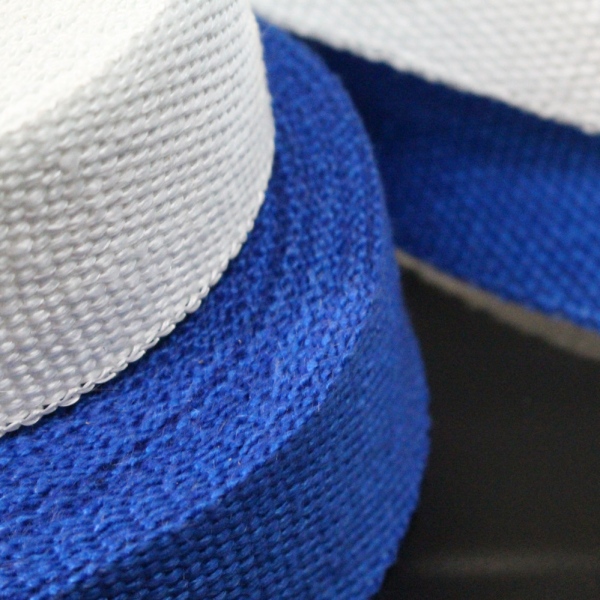

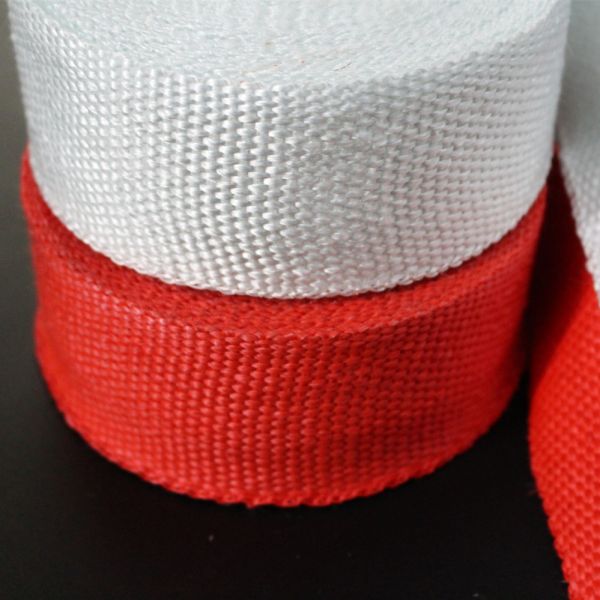

Fiberglass exhaust wrap is one of the most widely used flexible thermal insulation materials for automotive headers, exhaust pipes, motorcycle systems and industrial exhaust lines.
Also described as fiberglass exhaust heat wrap, fiberglass header wrap, fiberglass exhaust pipe wrap or glass fiber exhaust wrap, the material is woven into narrow tapes that can be installed directly around hot exhaust tubing.
BSTFLEX manufactures a complete range of exhaust and header heat wrap for automotive, motorcycle, racing, diesel and industrial thermal-management applications.
For buyers, the important questions are not simply whether the wrap is made from fiberglass. Width, roll length, thickness, weave, coating, exhaust temperature, pipe diameter and installation geometry all affect the finished result.
Fiberglass combines several properties that make it practical for exhaust insulation:
good thermal resistance;
flexible woven construction;
easy conformity around pipes and bends;
practical material cost;
availability in multiple widths;
availability in multiple roll lengths;
suitability for automotive and industrial exhaust applications.
Compared with rigid heat shields, fiberglass wrap can follow complex pipe geometry without requiring a formed metal component.
This makes it especially useful around:
tubular headers;
exhaust collectors;
motorcycle exhaust pipes;
automotive exhaust tubing;
diesel exhaust lines.
Fiberglass exhaust wrap is commonly selected when the application requires effective thermal containment without moving into a higher-temperature specialty material.
A hot exhaust pipe transfers heat into the surrounding area through radiation and convection.
Wrapping the pipe with a woven fiberglass insulation layer reduces the amount of heat transferred directly toward nearby components.
Typical objectives include:
reducing radiant heat around the exhaust;
protecting wiring and hoses;
reducing heat exposure to body panels and floors;
improving thermal control inside an engine compartment;
reducing accidental contact with hot exhaust surfaces.
The wrap is installed directly around the pipe using an overlapping spiral pattern.
Final thermal performance depends on:
material construction;
thickness;
overlap;
exhaust temperature;
installation quality;
airflow;
operating environment.
Headers are one of the most common applications for fiberglass exhaust wrap.
Tubular headers create a large hot surface area and often run close to:
ignition wires;
hoses;
brake components;
electrical connectors;
intake components;
body structures.
A flexible fiberglass header wrap can follow individual primary tubes and collectors more easily than many rigid insulation systems.
For complicated header geometry, narrower wrap is generally easier to install.
Fiberglass header wrap is commonly used on:
street cars;
performance cars;
motorcycles;
racing vehicles;
custom exhaust systems.
Long exhaust pipes and downpipes can also benefit from fiberglass insulation.
A fiberglass exhaust pipe wrap can be installed on:
straight exhaust tubing;
collector pipes;
downpipes;
tail sections;
diesel exhaust lines;
generator exhaust pipes.
Straight sections are generally faster to wrap than complex headers because less adjustment is required around bends.
For large industrial exhaust pipes, wider tape or removable insulation jackets may provide faster installation and easier maintenance.
Width is one of the most important practical selection factors.
A 1-inch wrap is useful for:
small-diameter tubing;
tight-radius bends;
motorcycle headers;
complex header primaries;
collectors with limited working space.
The narrower tape conforms more easily to changes in direction.
Its main disadvantage is installation time because more turns are required to cover the same pipe length.
A 2-inch wrap is commonly selected for:
larger headers;
exhaust pipes;
downpipes;
straight tubing;
longer pipe sections.
It covers more surface area per turn and can reduce installation time.
Current exhaust wrap specifications commonly include both 1-inch and 2-inch widths, while wider formats may be used for larger pipes or industrial exhaust systems.
For production projects, width should be selected according to:
pipe diameter;
bend radius;
available working space;
installation geometry.
The most common retail size is not automatically the best size for every application.
Common exhaust wrap roll lengths include:
15 ft;
25 ft;
50 ft;
100 ft.
Industrial and OEM customers may require longer rolls to reduce joints and packaging waste.
Material consumption depends on:
pipe outside diameter;
pipe length;
wrap width;
overlap;
number of bends;
collector geometry.
A header with multiple primary tubes can require significantly more material than a straight exhaust pipe of similar overall length.
For repeat production, calculating consumption from an actual drawing or physical sample is more reliable than estimating from vehicle type.
BSTFLEX can also support custom roll lengths for OEM and distributor projects.
Black fiberglass exhaust wrap is frequently selected where appearance is important or where the finished installation should blend into a dark engine compartment.
The black appearance may be created by a surface treatment or coating applied to the fiberglass structure.
Buyers should distinguish between:
the base fiberglass insulation;
the black surface treatment;
the operating temperature of the full finished product.
Color alone does not determine thermal performance.
When specifying black fiberglass exhaust wrap, ask for:
fiber construction;
thickness;
coating;
continuous temperature capability;
peak temperature capability.
BSTFLEX can supply black exhaust thermal protection products for applications where both heat control and finished appearance are important.

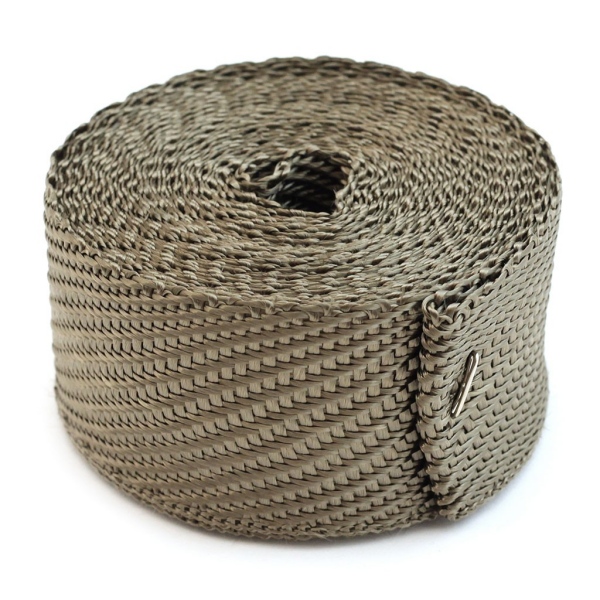

Fiberglass and titanium exhaust wrap are both widely used for exhaust thermal management, but they are typically selected for different operating conditions.
| Factor | Fiberglass Exhaust Wrap | Titanium Exhaust Wrap |
|---|---|---|
| Typical use | General exhaust insulation | Higher-temperature performance applications |
| Relative cost | Generally lower | Generally higher |
| Flexibility | Good | Good |
| Color options | White, tan, black | Brown, bronze, black |
| Common applications | Headers, pipes, motorcycles | Headers, downpipes, racing, turbo systems |
Fiberglass is often the more economical choice for general exhaust thermal control.
Higher-temperature titanium exhaust wrap becomes more relevant when the application involves:
greater thermal load;
repeated heat cycling;
turbocharged engines;
performance exhaust systems;
racing conditions.
For applications requiring still greater temperature capability, silica exhaust wrap should also be considered.
Silica occupies a higher-temperature position in the exhaust insulation range.
Fiberglass is suitable for many general automotive and industrial exhaust applications.
Silica should be considered when:
continuous temperature is significantly higher;
the wrap is located close to turbo manifolds;
racing exhaust temperatures are severe;
conventional fiberglass does not provide enough temperature margin.
BSTFLEX manufactures High Temperature Inferno Header Exhaust Heat Wrap for severe-temperature applications where high-temperature silica construction is more appropriate.
The correct material should be selected from actual operating temperature rather than assuming the highest-temperature material is always necessary.
Fiberglass exhaust heat wrap is used across a broad range of equipment.
Used to control radiant heat around tubular exhaust headers and protect nearby components.
Useful around exposed header pipes and exhaust tubes located close to the rider or body panels.
Suitable where operating temperature remains within the fiberglass material capability.
Used where thermal containment is needed around headers and exhaust tubing.
For more severe turbo applications, titanium or silica exhaust wrap may provide a greater temperature margin than standard fiberglass.
Fiberglass wrap can be used on diesel exhaust pipes where sustained heat and personnel protection are important.
Generator exhaust piping can benefit from flexible insulation where nearby equipment or personnel require heat protection.
Fiberglass wrap is also used around:
smaller industrial exhaust tubes;
hot pipes;
equipment exhaust lines;
machinery exhaust systems.
Temperature ratings should be evaluated carefully.
Industry product specifications commonly distinguish between:
continuous operating temperature;
short-duration peak exposure;
direct-contact temperature;
radiant heat exposure.
These values are not interchangeable.
Different fiberglass constructions may also have different limits.
For BSTFLEX sourcing, buyers should confirm:
continuous operating temperature;
peak temperature;
whether the value is direct, radiant or intermittent;
coating limitations;
installation environment.
The actual BSTFLEX product specification should be used when selecting material for a specific exhaust system.
Fiberglass exhaust wrap is normally installed with consistent overlap between turns.
Overlap affects:
thermal coverage;
finished thickness;
material consumption;
installation stability.
Some exhaust wrap systems use guide lines or a defined overlap dimension to help maintain consistent coverage during installation.
The required overlap should be based on:
selected product specification;
pipe geometry;
desired thermal coverage;
installation method.
Do not assume that one universal overlap is correct for every exhaust wrap.
BSTFLEX customers should follow the installation specification supplied for the selected product and application.
Exhaust wrap must be secured so that it does not unwind during vibration and repeated heat cycles.
Common fastening methods include:
stainless steel locking ties;
stainless steel wire;
metal clamps;
application-specific fixing bands.
Stainless steel ties are widely used because they tolerate exhaust temperatures much better than ordinary plastic cable ties.
For OEM kits, exhaust wrap and stainless-steel fixing ties can be packaged together according to project requirements.
Some installers lightly wet fiberglass wrap before installation to make the woven tape temporarily easier to handle around bends.
However, this is not a universal requirement.
Whether pre-wetting is appropriate depends on:
weave;
coating;
product construction;
installation instructions.
Do not assume that all fiberglass exhaust wrap should be soaked.
Follow the instructions for the specific product.
Generally, a flexible exhaust joint should not automatically be treated like a rigid exhaust pipe.
Flex sections move during:
engine vibration;
thermal expansion;
powertrain movement.
Wrapping tightly over a flex joint may restrict movement or cause the insulation to wear prematurely.
Where thermal protection around a flex joint is required, a separate:
shield;
sleeve;
removable insulation solution
may be more suitable.
Catalytic converters already operate at high internal temperatures.
Adding direct insulation can increase retained heat, so wrapping a catalytic converter should not be treated the same as wrapping a normal exhaust pipe.
Where the objective is to protect:
the floor;
transmission tunnel;
nearby wiring;
surrounding components;
a separate heat shield is generally the safer thermal-management approach unless the exhaust system specification specifically allows direct insulation.
The most useful calculation inputs are:
pipe outside diameter;
pipe length;
wrap width;
overlap.
Bends and collectors increase actual material consumption, so straight-pipe calculations should be treated as a baseline rather than an exact purchasing quantity.
For OEM exhaust assemblies, BSTFLEX can estimate approximate material usage from:
drawings;
dimensions;
physical samples.
For a detailed sizing method, use the BSTFLEX Exhaust Wrap Calculator and Sizing Guide.
Complete fiberglass exhaust wrap kits commonly combine the wrap with:
stainless steel ties;
fixing hardware;
basic installation accessories.
For private-label and distribution projects, BSTFLEX can support custom kit configurations and packaging based on:
required roll sizes;
fastening hardware;
accessory combinations;
branding requirements.
For a quotation, provide as much of the following information as possible:
fiberglass wrap width;
roll length;
thickness;
color;
operating temperature;
exhaust pipe diameter;
application;
required quantity;
packaging format;
accessories required.
For OEM projects, drawings or pipe dimensions are particularly useful when calculating roll consumption.
BSTFLEX manufactures high-temperature textile products for automotive and industrial thermal management.
For fiberglass exhaust wrap projects, supply options may include:
custom widths;
custom roll lengths;
black or natural-color configurations;
bulk rolls;
stainless steel tie kits;
retail exhaust wrap kits;
private-label packaging;
distributor packaging;
OEM supply.
This allows the product to be specified for production requirements rather than being limited to fixed retail roll sizes.
View the complete BSTFLEX Exhaust and Header Heat Wrap range for fiberglass, titanium, silica and other exhaust thermal insulation products.
Fiberglass exhaust wrap is a woven high-temperature glass-fiber tape installed directly around exhaust pipes and headers to reduce heat transfer toward surrounding components.
Yes. Headers are one of the most common applications because narrow fiberglass tape can follow tubular primary pipes and collectors.
Neither is universally better. One-inch wrap is easier around small pipes and tight bends, while two-inch wrap generally covers larger or straighter tubing faster.
Black fiberglass exhaust wrap is fiberglass-based thermal insulation with a dark surface treatment or coating. Buyers should verify the underlying fiber, coating and temperature rating.
Fiberglass is usually a practical and economical general-purpose option. Titanium exhaust wrap is commonly selected for higher-temperature or performance applications.
It can be, provided the operating temperature remains within the specific fiberglass wrap capability. Higher-temperature turbo systems may require titanium or silica exhaust wrap.
No. Standard fiberglass exhaust wrap is intended for thermal insulation, not structural exhaust repair or leak sealing.
It is generally better to avoid tightly wrapping flex joints because they require movement. A separate sleeve, shield or removable insulation solution may be more suitable.
Required quantity depends on pipe diameter, pipe length, wrap width, overlap and the number of bends.
Yes. OEM and distributor projects can be specified around width, roll length, thickness, color, packaging, accessories and quantity requirements.
No.10, Chuangxin North Road, Nanshan Park, Ningguo Economic and Technological Development Zone, Ningguo City, Anhui Province, China
Tel/Whatsapp : 0086-15856303740
Email : sales@bstbraidedsleeve.com
Skype : vanesa-cheng
