The

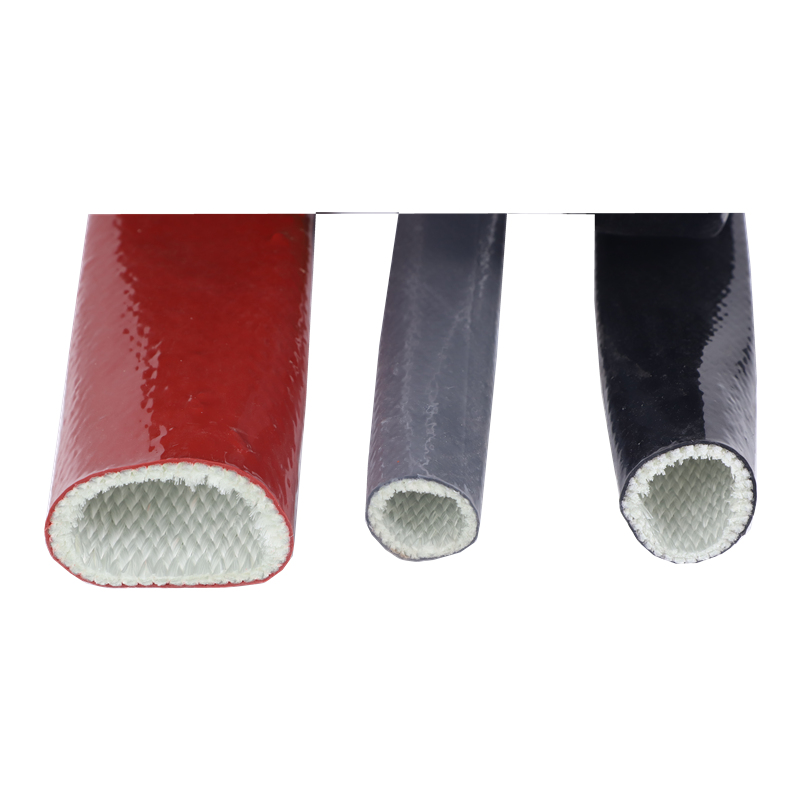

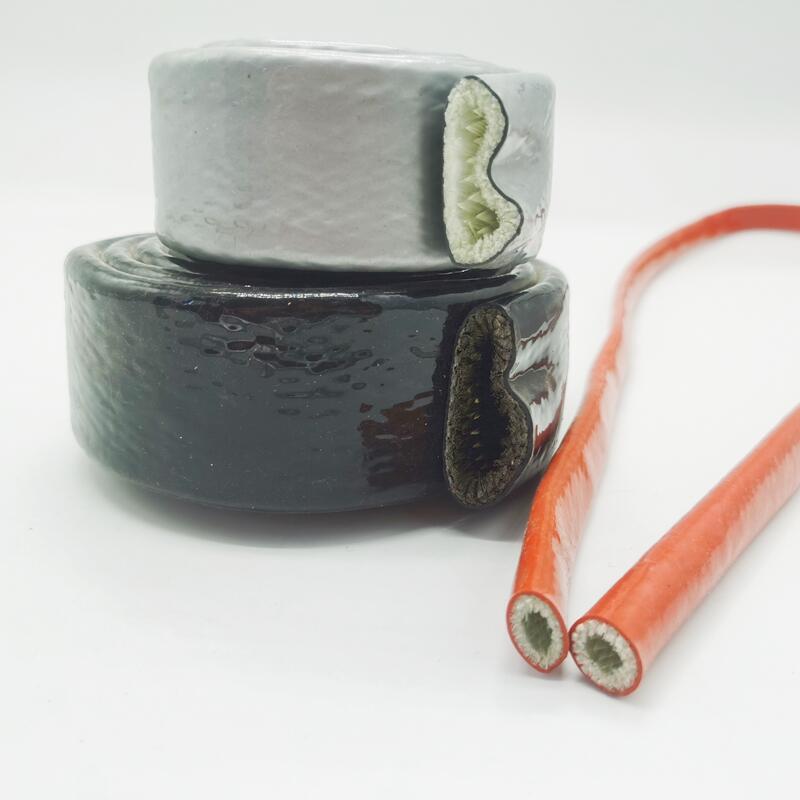

hose fire protection sleeve is a kinds of fire protection hose sleeve, it is also named fire sleeve.
The outside is Iron oxide silicone rubber or any other color silicone rubber, the inside is glass fiber.
This hose fire protection sleeve is commonly used to protect hose and cables assemblies from flame and molten metal splash.
What is the size of the hose fire protection sleeve?
ID 6 to 150 mm
What is the color of the fire protection hose sleeve?
Iron oxide red, orange, black, silver, blue, etc.
How to find the manufacturer of the fire protection hose sleeve?
The manufacturer can make face to face video in the factory at anytime. Also the factory will make a lots of certificates and tests for it. You can visit the factory.
What is the length of the hose fire protection sleeve?
We can cut them with special length like 100mm, 200mm, etc. The roll length can be 10 15 20 25 30 50 meter, or 1000 2000 meter with continus length.
How to install the fire protection hose sleeve?
Measure the outside of the hose, and add MIN 5mm size for fire protection hose sleeve. Like the hose outside 25mm, please choice 30mm fire sleeve. The bigger size is better than smaller size.
Install the fire sleeve to the hose from one end, and push the hydraulic hose into the fire sleeve slowly. Then use firesleeve tape or clamp to finish the install.
How about the temperature resistant ability of the fire sleeve?
The fire sleeve can be continuously exposed to a high temperature of 260°C without being damaged. And can withstand -70°C without being damaged. It can withstand 15 to 20 minutes at a high temperature of 1090°C and can withstand a time of 15 to 30 seconds at a high temperature of 1650°C.
How to make the hose fire protection sleeve special?
Special color is base on the order, and can print the special LOGO.
How about the quanlity of BSTFLEX hose fire protection sleeve?
We make a lot of test and certificates for it, and we will make more in the future.
MSHA, -70 degree C Test, 260 degree C test, UL 1441, ROHS, REACH
DIN EN45545-2:2020 Rail Certificateion
DIN 45545 Low smoke toxicity
DIN 54837/5510-2 Rail vehicle certificated for resistant to combustibility
NF EN ISO 11925-2 (15 AND 30 SEC)
TB/T 3138-2018 Technical specification of flame retardant materials for railway locomotive and vehicle
The fire protection hose sleeve is for high temperature protection for hose. BSTFLEX also have abrasion protection for hose. More information please contact us.
