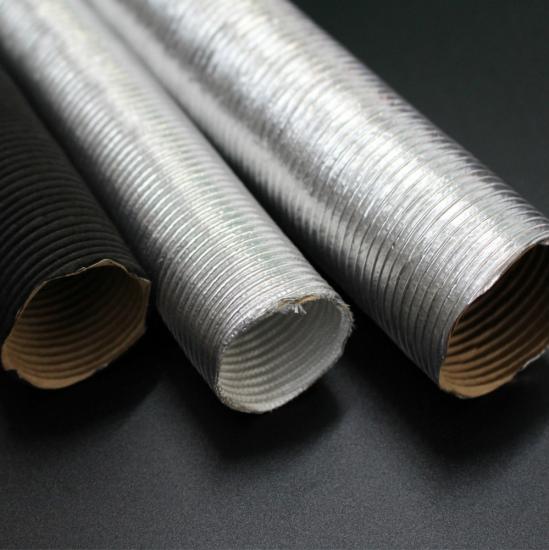

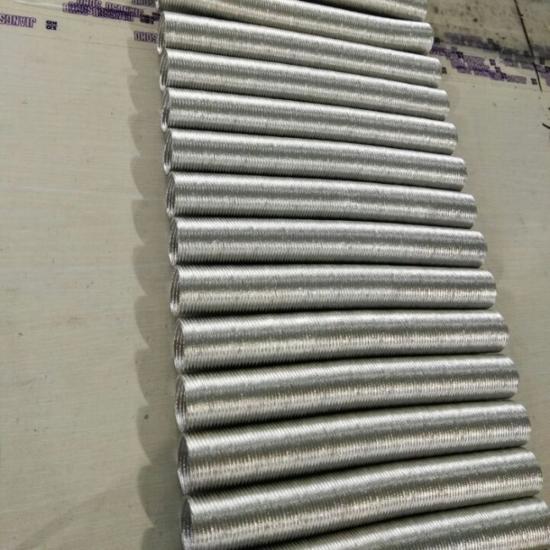

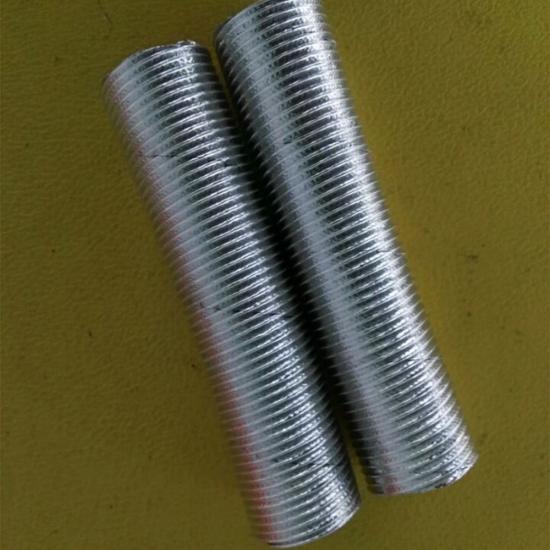

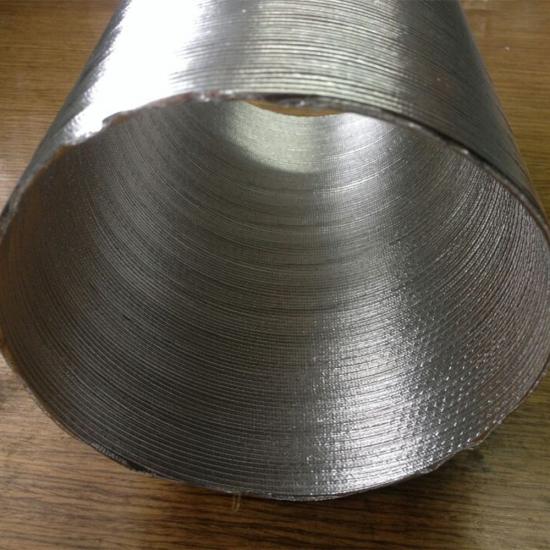

Aluminum Foil Heat-Reflective Corrugated Sleeving

Aluminum Foil Heat-Reflective Corrugated Sleeving is made of aluminum foil, this sleeving reflects heat away from contents and withstands temperatures up to 900° F to protect against internal and external sources of heat. The corrugated construction gives it impact and abrasion resistance similar to conduit, but with more flexibility. It holds its shape when bent.
  • Item NO.:

    HPT
  • Description

  • Specifications

Aluminum Foil Heat-Reflective Corrugated Sleeving made by 3 layer aluminum foil. The use of these aluminum foil materials keeps the conduit very light while not retaining heat like other materials. The aluminum foil material has shown excellent long-term heat protection in high temperature environments found in automotive and industrial applications.


Applications

Power steering hoses
Air conditioning hoses
Heater / Radiator hoses
TOC lines
Fuel lines
Wire assemblies
Brake lines or hoses

Used to protect wire and cable in vehicle engines, it resists antifreeze, brake fluid, gasoline, and oil.


Custom Options
Special bulk packaging to maximize productivity, minimize waste
Custom short length
Inside insulation layer upon request

Size Range
ID 6 mm to 160 mm
Part Number Construction Material Size
mm
BST-HPT-APK APK aluminum, kraft paper, plastic film 6-160
BST-HPT-PAK PAK kraft paper, aluminum ,plastic film 6-160
BST-HPT-KAK KAK plastic film, aluminum, plastic film 6-160
BST-HPT-APP APP aluminum, kraft paper, kraft paper 6-160
BST-HPT-AP AP aluminum, kraft paper 6-160
BST-HPT-3A 3A 3 layer aluminum 6-160
BST-HPT-6A 6A 6 layer aluminum 6-160
BST-HPT-A5P A5P aluminum, 5 layer kraft paper 6-160
BST-HPT-AFA AFA aluminum, fiberglass, aluminum 6-160
BST-HPT-AAF AAF aluminum, aluminum, fiberglass 6-160
BST-HPT-FAA FAA fiberglass, aluminum, aluminum 6-160
