Embossed Stainless Steel Thermal Barrier Sheet
BSTFLEX Embossed Stainless Steel Thermal Barrier Sheet is a durable and formable heat shield material designed for automotive and industrial high-temperature protection. It is widely used for exhaust heat shields, turbo heat barriers, catalytic converter shields, muffler shields, firewall barriers, floor pan insulation panels, and underbody thermal protection. This stainless steel barrier sheet is easy to cut, bend, fold, stamp, and form for custom heat shield fabrication.
Popular thicknesses include 0.1 mm, 0.15 mm, and 0.2 mm, which are widely used in heat shield production for different rigidity, weight, and forming requirements. Custom embossed patterns are available, and BSTFLEX has multiple existing embossing molds to support different structural designs, stiffness targets, and project requirements. We can supply standard sheets or develop custom parts according to drawings or samples.
For more thermal protection solutions, please visit our Automotive Heat Shields category. For extreme heat applications, you can also review our Alloy 625 Inconel Heat Shield.
Quick Product Highlights
- Popular thicknesses: 0.1 mm, 0.15 mm, 0.2 mm
- Custom embossed patterns available
- Multiple existing embossing molds
- Easy to cut, fold, stamp, and form
- Suitable for custom exhaust heat shield fabrication
- Better rigidity and durability than many lightweight sheet alternatives
- Available for OEM, aftermarket, and industrial thermal protection projects
What Is Stainless Steel Thermal Barrier Sheet?
Stainless steel thermal barrier sheet is a formed or formable metal heat shield material used to reduce radiant heat transfer and protect nearby parts from high-temperature exposure. Compared with ordinary flat sheet materials, embossed stainless steel structures provide better rigidity, better shape retention, and more reliable long-term performance in demanding automotive heat zones. It is especially suitable where the shield must hold its shape under vibration, repeated thermal cycling, and close exposure to exhaust heat.
Why Choose Embossed Stainless Steel for Heat Shields?
Embossed stainless steel is a practical choice for many heat shield projects because it combines structural strength, high-temperature durability, corrosion resistance, and custom forming capability. The embossed surface helps improve stiffness and supports more stable geometry after cutting and forming, making it easier to build durable shields for complex automotive layouts.
- Good rigidity for formed heat shield structures
- Better resistance to distortion in vibration-heavy applications
- Suitable for high-temperature zones around exhaust systems
- Can be cut and fabricated into custom heat shield parts
- Long service life in demanding underhood and underbody environments
Popular Thicknesses
BSTFLEX hot-selling thicknesses are 0.1 mm, 0.15 mm, and 0.2 mm. These thicknesses are widely used because they offer a practical balance between flexibility, formability, rigidity, and weight.
| Thickness | Typical Use | Feature |
|---|---|---|
| 0.1 mm | Lightweight shields and flexible formed barriers | Easy to form and trim |
| 0.15 mm | General automotive exhaust heat shield fabrication | Balanced rigidity and formability |
| 0.2 mm | Stronger heat shield structures with higher stiffness demand | Better structural stability |
Other thicknesses can also be discussed for custom projects based on application temperature, part size, forming complexity, stiffness target, and installation conditions.
Embossing and Pattern Options
Custom embossed patterns are available. BSTFLEX has many existing embossing molds, allowing us to support different heat shield structures without starting every project from zero. Different embossed patterns can be used for different product requirements, including rigidity improvement, shape retention, appearance preference, and part-specific design needs.
We can support:
- Custom embossed pattern selection
- Existing mold matching for faster sampling
- Pattern development based on drawing or sample
- Sheet supply or formed heat shield part production
Key Features
- Made for high-temperature heat shield applications
- Easy to cut, bend, fold, and fabricate
- Suitable for flat, folded, stamped, or formed parts
- Embossed structure improves stiffness and durability
- Good resistance to harsh automotive environments
- Suitable for both standard and custom projects
- Can be supplied according to drawings, dimensions, or samples
Typical Applications
Embossed Stainless Steel Thermal Barrier Sheet is widely used in the following applications:
- Exhaust pipe heat shield fabrication
- Turbo heat shield panels
- Catalytic converter heat protection shields
- Muffler and resonator shielding
- Firewall and bulkhead thermal barriers
- Floor pan and underbody heat protection
- Brake line, fuel line, and wiring heat barriers
- Engine bay heat management panels
Stainless Steel vs Aluminum Heat Shield Sheet
In many applications, stainless steel is preferred when more strength, rigidity, and durability are required. Aluminum can still be useful in lightweight reflective barrier applications, but embossed stainless steel is often the better choice for structural heat shield fabrication around demanding exhaust systems.
| Feature | Embossed Stainless Steel Sheet | Aluminum Heat Shield Sheet |
|---|---|---|
| Structural Strength | Higher | Lower |
| Rigidity After Forming | Better | Lower |
| Durability Near Exhaust | Better | Application dependent |
| Resistance to Vibration Distortion | Better | Lower |
| Weight | Higher | Lower |
| Best Use | Formed structural heat shields | Lightweight reflective barriers |
If your project requires extreme heat resistance beyond standard stainless steel solutions, please also review our Alloy 625 Inconel Heat Shield.
Available Custom Options
- Custom embossed patterns
- Multiple existing embossing mold options
- Custom cut sizes
- Custom sheet dimensions
- Folded, stamped, or formed parts
- Prototype or volume production
- Development based on drawing or sample
Standard Sizes
| Part No. | Size |
|---|---|
| 520100 | 1000 mm × 500 mm |
| 520101 | 1000 mm × 600 mm |
| 520102 | 1000 mm × 1000 mm |
| 520103 | 1200 mm × 1000 mm |
Custom sizes are available for OEM, aftermarket, and industrial projects.
How to Request a Quote
To recommend the most suitable stainless steel thermal barrier sheet or custom heat shield solution, it is helpful to provide the following information:
- Application position
- Required thickness
- Preferred sheet size or part dimensions
- Whether embossing pattern is standard or custom
- Drawing, sketch, or sample availability
- Target quantity
- Whether sheet supply or formed parts are needed
Use Together With
FAQ
What are the hot-selling thicknesses?
The hot-selling thicknesses are 0.1 mm, 0.15 mm, and 0.2 mm. These are widely used for automotive heat shield fabrication.
Can you make custom embossed patterns?
Yes. Custom embossed patterns are available for different heat shield structures and project requirements.
Do you already have embossing molds?
Yes. BSTFLEX has many existing embossing molds, which helps support faster sampling and flexible pattern options for different projects.
Can this stainless steel sheet be cut and formed into custom parts?

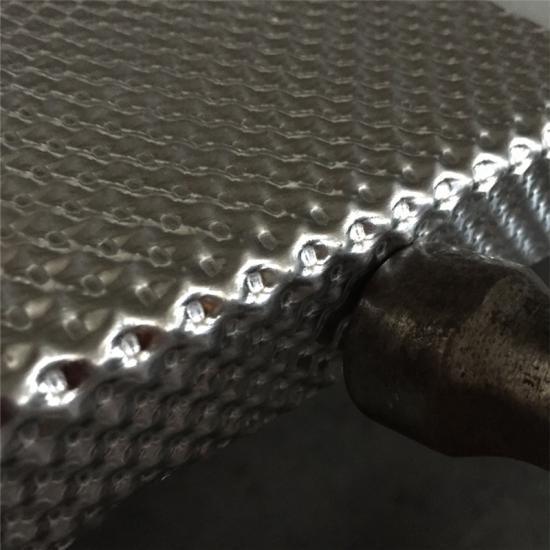

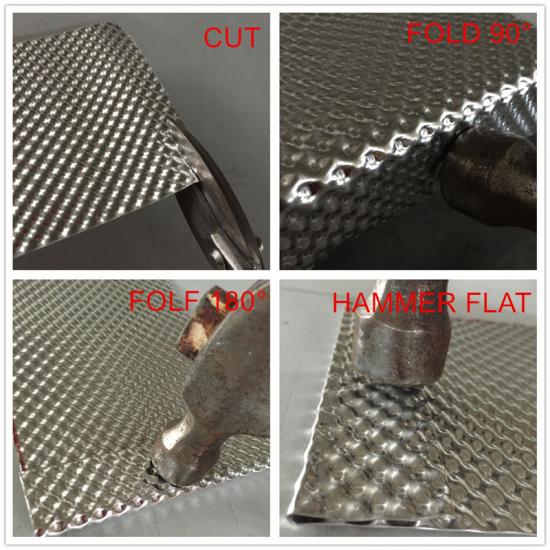

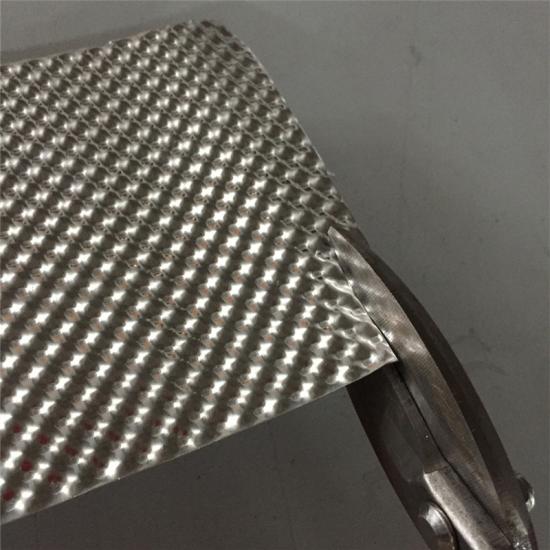

Yes. It can be cut, folded, stamped, and formed into custom heat shield parts based on drawings, dimensions, or samples.
Is stainless steel better than aluminum for exhaust heat shields?
In many exhaust applications, stainless steel is preferred when higher strength, better rigidity, and better durability are required. Aluminum may still be useful where low weight is the main priority.
What information is needed for quotation?
Please provide the application, thickness, size, embossing requirement, drawing or sample if available, and target quantity.
