What Is an Exhaust Heat Shield Liner?

Definition (Featured Snippet): An exhaust heat shield liner is an internal thermal barrier placed inside a heat-shield assembly to reduce heat transfer from hot exhaust components to nearby surfaces. It typically combines a metal facing (aluminum or stainless steel) with a high-temperature insulation layer, and is supplied either adhesive-backed or non-adhesive depending on the retention method.

Why Heat Shields Need a “Liner” in the First Place

Metal heat shields alone mainly act as a physical guard and a basic radiant barrier. In demanding exhaust zones—where temperatures cycle rapidly and airflow varies—metal shields can still conduct heat, and the surface temperature of surrounding covers or panels may rise beyond comfort or material limits.

A liner adds a controlled insulation layer inside the heat-shield system, improving thermal resistance without requiring redesign of the entire exhaust layout.

How an Exhaust Heat Shield Liner Reduces Heat Transfer

A liner supports heat management by addressing two primary paths:

• Radiant heat: A metal facing reflects a portion of infrared radiation away from the shield surface.
• Conductive heat: The insulation layer slows heat flow from the hot-side (exhaust-side) to the cold-side (outer surface), reducing surface temperature rise.

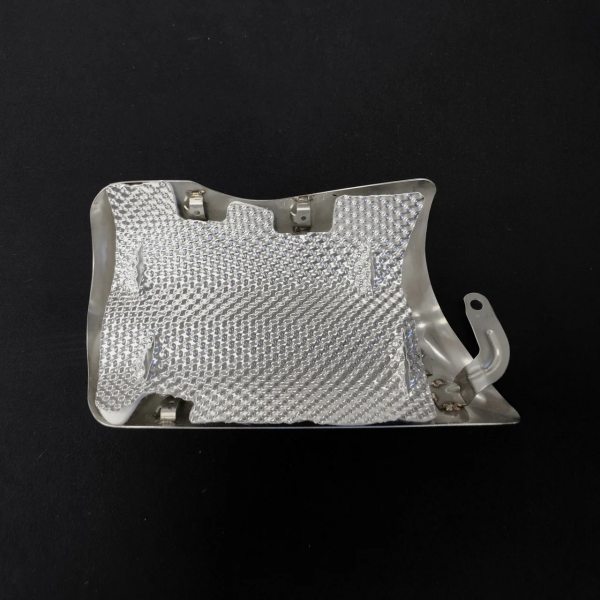

In practice, the liner functions as a compact “thermal stack-up” that is optimized around limited installation space and real-world vibration.

Common Constructions and Material Choices

Metal Facing: Aluminum vs. Stainless Steel

Aluminum facing is widely used when reflectivity and low mass are priorities. Stainless steel facing is typically selected where durability, abrasion resistance, and corrosion resistance matter more, such as harsh environments or long service intervals.

Insulation Layer: Selecting the Right Grade

The insulation layer is chosen by balancing thermal performance against packaging constraints. Key selection factors include available clearance, target temperature reduction, vibration exposure, and the duty cycle (steady cruise vs. frequent idle/stop-start vs. off-road load conditions).

Adhesive-Backed vs. Non-Adhesive

• Adhesive-backed liners are commonly used for simplified assembly and consistent placement during installation.
• Non-adhesive liners are preferred where mechanical retention is used, where rework/removal is expected, or where surface prep and adhesive aging are concerns.

Where It’s Used (Including “Under Seat Heat Shield” Searches)

You will see this type of liner in locations where heat needs to be controlled in tight packaging:

• Motorcycle exhaust heat shield assemblies

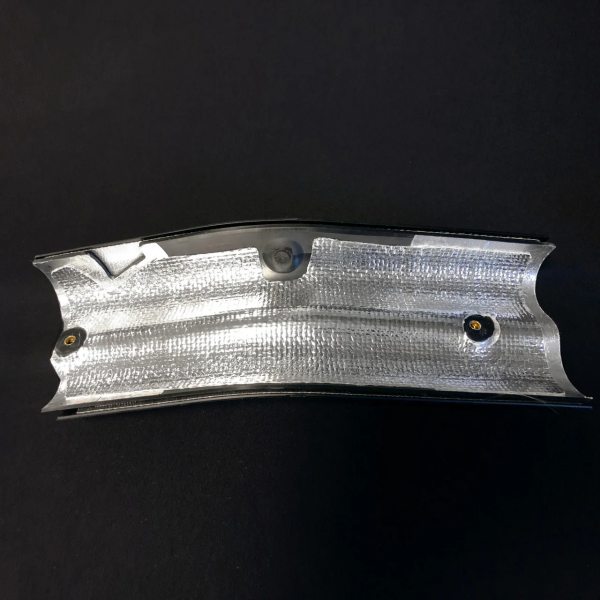

• Underbody hot zones near seats, side panels, and passenger contact areas (often searched as under seat heat shield)
• ATV/UTV under-seat and side cover heat-management areas
• Custom exhaust builds where component clearance and thermal protection are critical

Quick Buying Guide: What to Specify in an RFQ

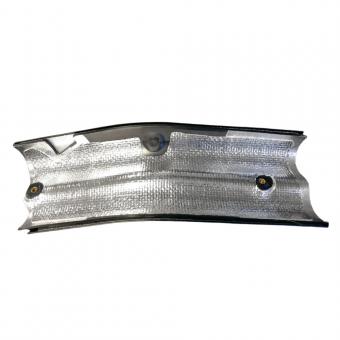

If you are sourcing an exhaust heat shield liner kit for OEM/ODM or aftermarket packaging, these parameters accelerate quoting and reduce redesign cycles:

• Application & layout: vehicle type, exhaust route, hot spots, and photos/drawings
• Space limit (mm): maximum thickness allowed under vibration
• Facing metal: aluminum or stainless steel based on durability and environment
• Retention method: adhesive-backed or non-adhesive (mechanical retention)

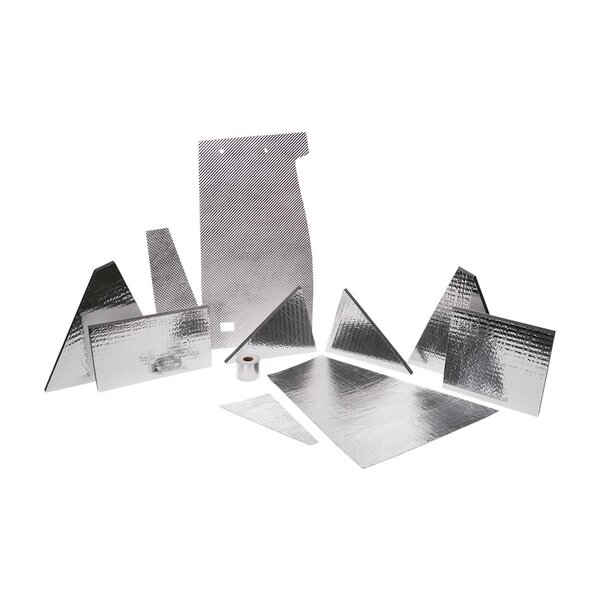

• Form factor: universal sheet (cut-to-fit) or precision die-cut kit
• Volume: sample quantity, pilot run, and annual forecast
• Special requirements: odor/smoke sensitivity, corrosion exposure, packaging/labeling

BSTFLEX Manufacturing Capability (OEM/ODM)

BSTFLEX manufactures high-temperature thermal protection products for automotive and powersports applications. We support custom heat shield liner programs with:

• Aluminum or stainless steel faced constructions
• Multiple insulation options for different thermal targets and packaging limits
• Adhesive-backed or non-adhesive configurations based on your assembly method
• Universal sheets or precision die-cut kits built from drawings, templates, or samples

Request a Quote (RFQ)

To receive a fast quotation from BSTFLEX, please provide:

• Vehicle model/application and photos of the installation zone
• Space limit (mm) and target protection area
• Facing metal preference (aluminum or stainless steel)
• Adhesive requirement (with adhesive / without adhesive)
• Quantity (trial order + annual forecast)
• Any special requirements (temperature target, vibration, packaging/branding)

Our team will recommend a suitable construction and respond with a quotation promptly.

FAQ

What is the difference between a heat shield and a heat shield liner?
A heat shield is the outer protective cover. A liner is the internal thermal layer that increases the heat shield system’s thermal resistance and helps reduce outer surface temperature rise.

Is aluminum or stainless steel better for the facing layer?
Aluminum is commonly chosen for reflectivity and low mass. Stainless steel is often selected for durability and resistance to abrasion and corrosion. Selection depends on environment and service life targets.

When should I choose adhesive-backed liners?
Choose adhesive-backed designs when you want simplified placement and faster assembly. Choose non-adhesive designs when mechanical retention is preferred or when removability and rework are important.

Can this be supplied as a custom kit?
Yes. Manufacturers can provide universal sheets or precision die-cut kits based on drawings, templates, or samples.
