The EGR (Exhaust Gas Recirculation) pipe heat shield is a protective component in an automotive exhaust system. Here’s a detailed explanation of what it is and why it’s used:

What is the EGR Pipe Heat Shield?

EGR System:

• The EGR system is designed to reduce nitrogen oxide (NOx) emissions from an internal combustion engine. It recirculates a portion of the exhaust gases back into the engine’s intake air. This process lowers the combustion temperature and thereby reduces the formation of NOx.

EGR Pipe:

• The EGR pipe is a conduit that carries the exhaust gases from the exhaust manifold to the intake manifold. This pipe is exposed to very high temperatures due to the hot exhaust gases passing through it.

Heat Shield:

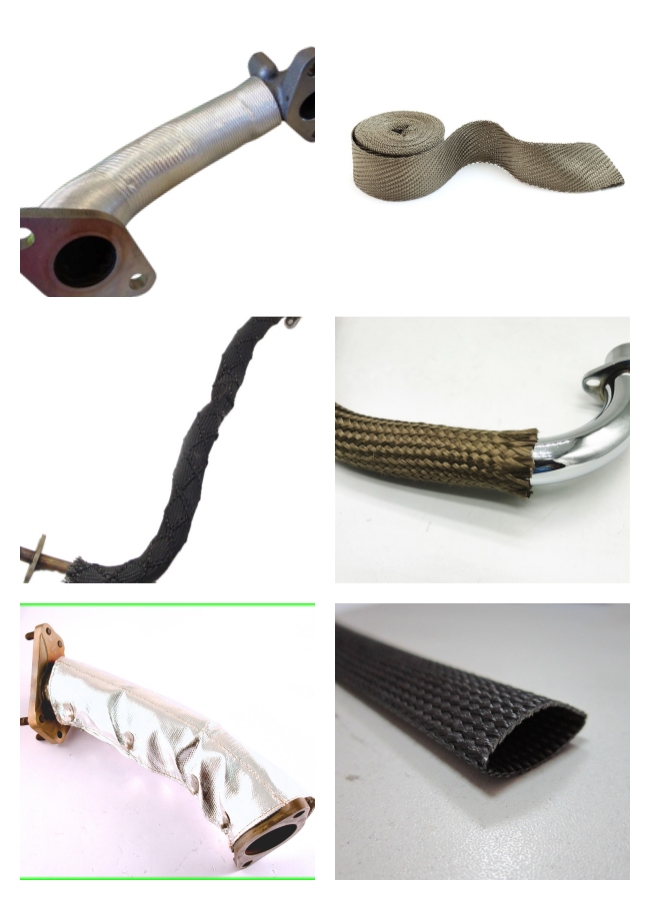

• The EGR pipe heat shield is a barrier or cover, often made of heat-resistant materials such as aluminum, stainless steel, or composites, that is placed around the EGR pipe. It is designed to protect surrounding components from the extreme heat of the exhaust gases.

Why Use an EGR Pipe Heat Shield?

1. Thermal Protection:

   • Protects Components: The heat shield protects nearby engine components, wiring, and other parts from the high temperatures of the EGR pipe, which could cause damage or degradation.
   • Safety: It reduces the risk of heat-related failures and fires by preventing heat from spreading to sensitive areas.

2. Improved Performance:

   • Temperature Management: By controlling the heat, the shield helps maintain optimal operating temperatures for various engine components, ensuring better performance and efficiency.
   • Prevents Heat Soak: It minimizes heat soak into the intake manifold and other parts, which can adversely affect engine performance.

3. Emission Control:

   • Efficiency: Maintaining the integrity and performance of the EGR system is crucial for emission control. Proper thermal management ensures that the EGR system functions effectively, helping to reduce harmful emissions.

4. Durability and Longevity:

   • Extended Lifespan: Protecting engine components from excessive heat can prolong their lifespan and reduce the frequency of repairs and replacements.
   • Material Integrity: Prevents heat-induced wear and tear on the EGR pipe and other nearby parts.

How Does it Work?

The EGR pipe heat shield works by:

• Reflecting Heat: Reflecting radiant heat away from sensitive components.
• Insulating: Providing a thermal barrier that reduces heat transfer.
• Dissipating Heat: Some heat shields are designed to dissipate heat more efficiently, reducing the overall temperature around the EGR pipe.

The EGR pipe heat shield is a crucial component in modern internal combustion engines, particularly in vehicles equipped with EGR systems. It ensures thermal protection, improves engine performance, helps in emission control, and enhances the durability and longevity of various engine parts.
