Diesel Heater Exhaust Hose: 24mm vs 25mm, Length, Clamps and Installation Requirements
A diesel heater exhaust hose is a flexible metal pipe used on the exhaust gas side of a diesel air heater or parking heater system. It carries hot exhaust gas away from the heater outlet and toward the silencer, discharge point or marine exhaust outlet. For safe and reliable installation, buyers must confirm the correct diameter, length, clamp type, connector style and heat protection requirement before ordering.
Two of the most common search sizes are 24mm diesel heater exhaust pipe and 25mm diesel heater exhaust hose. These sizes are close, but they should not be treated as interchangeable without checking the heater outlet, connector and clamp fit. A small diameter mismatch can cause leakage, difficult installation, loose joints or poor connection with the exhaust silencer.

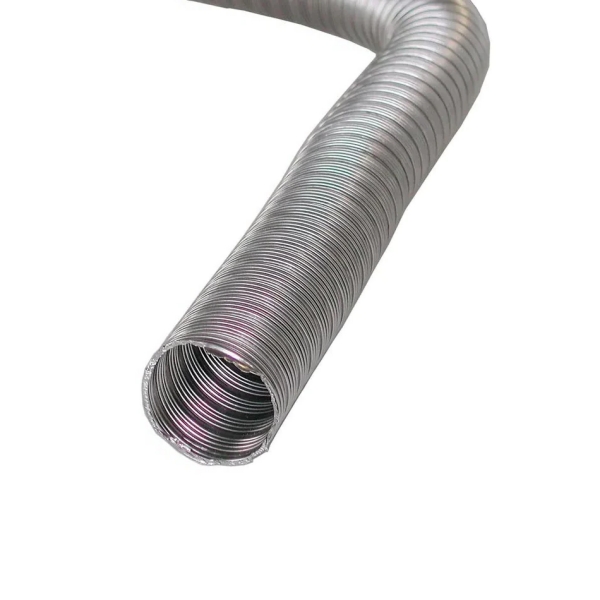

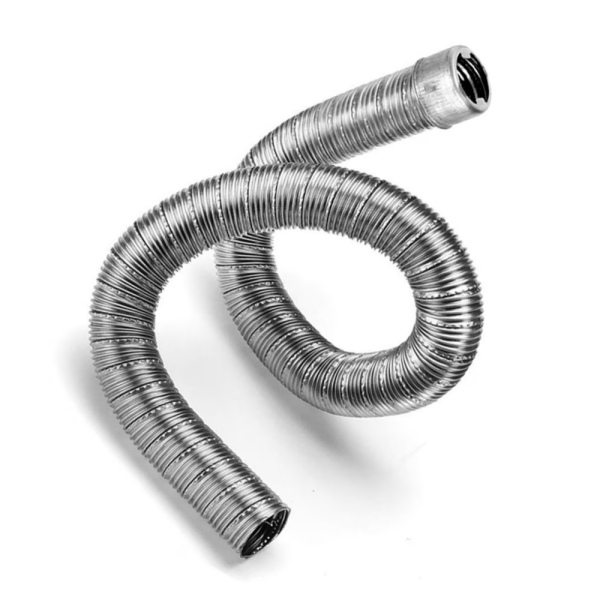

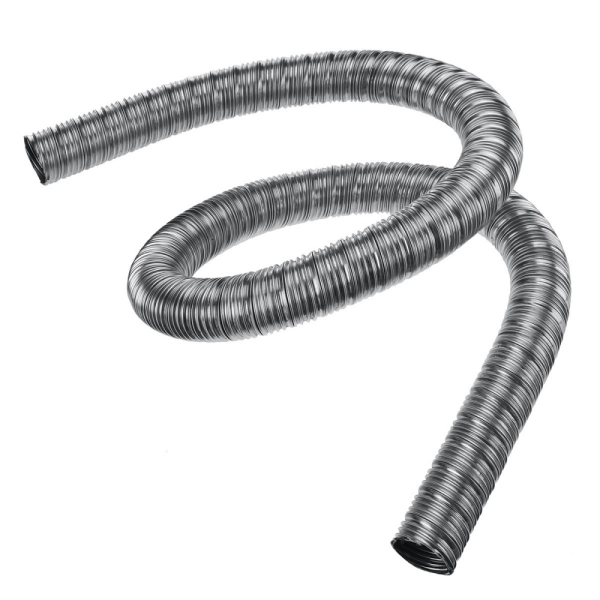

BSTFLEX supplies Flexible Stainless Steel Diesel Heater Exhaust Hose for parking heater systems, RV heater systems, marine heater installations, truck cabin heaters, generator exhaust routing and OEM heater kits. This product is part of the Aluminized Heat Protection Tube and Warm Air Ducting category.
Why 24mm and 25mm Exhaust Hose Must Be Checked Carefully
The difference between 24mm and 25mm seems small, but it matters on an exhaust connection. Diesel heater exhaust pipe must fit the heater outlet, connector, clamp and silencer inlet securely. If the pipe is too small, it may not seat correctly on the connector. If it is too large, the clamp may not seal the joint properly.
In B2B purchasing, the buyer should not only write “24mm” or “25mm” in the inquiry. The safest specification includes inside diameter, outside diameter if required, hose length, wall structure, connector type, clamp requirement and whether the exhaust pipe connects to a silencer or marine outlet.
Before Selecting 24mm or 25mm Exhaust Hose, Confirm:
- Heater exhaust outlet outside diameter or connector size.
- Original exhaust hose inside diameter, if replacing an old hose.
- Clamp style and tightening range.
- Exhaust silencer inlet and outlet diameter.
- Required hose length and routing direction.
- Whether insulation sleeve or heat protection is needed near sensitive parts.
24mm vs 25mm Diesel Heater Exhaust Hose
Both 24mm and 25mm exhaust hoses are used in heater exhaust applications. The correct choice depends on the actual heater outlet and exhaust system components, not only on the heater power rating or product name.
| Item | 24mm Diesel Heater Exhaust Pipe | 25mm Diesel Heater Exhaust Hose |
|---|---|---|
| Typical Buyer Search | 24mm diesel heater exhaust pipe, 24mm stainless steel exhaust hose | 25mm diesel heater exhaust hose, 25mm parking heater exhaust pipe |
| Main Use | Compact heater exhaust routing and heater kit supply | Vehicle, RV, marine and auxiliary heater exhaust systems |
| Key Risk | May be too tight if the outlet or connector requires a larger fit | May be too loose if the original system is designed around smaller pipe |
| What to Measure | Heater outlet, connector OD, silencer inlet and old hose ID | Heater outlet, connector OD, silencer inlet and old hose ID |
| Recommended Purchasing Method | Specify exact ID and length, plus clamp and connector requirement | Specify exact ID and length, plus clamp and connector requirement |
How to Measure Diesel Heater Exhaust Hose Diameter
Exhaust hose sizing should start from the connection point. The heater outlet, connector and silencer must be measured before mass production. If the buyer has an original hose, measure both the inside diameter and outside diameter, then provide photos showing how the hose connects to the heater system.
| Measurement Point | What to Measure | Why It Matters |
|---|---|---|
| Heater Exhaust Outlet | Outlet OD or connector diameter | Determines whether the exhaust hose can fit over or connect to the outlet. |
| Original Exhaust Hose | Hose ID and OD | Useful for replacement orders and sample-based production. |
| Exhaust Silencer | Inlet and outlet diameter | Ensures the hose and silencer connection can be clamped correctly. |
| Connector or Adaptor | Both sides of the connector | Prevents mismatch when the system uses different pipe sizes. |
| Clamp Range | Clamp size and tightening range | Confirms whether the clamp can seal the hose and connector joint. |
Choosing the Correct Exhaust Hose Length
Exhaust hose length affects installation layout, routing space and packaging. A hose that is too short may pull against the connector or silencer. A hose that is too long may require unnecessary bends and make routing more difficult.
For OEM heater kits, fixed lengths should be defined before production. For distributors, bulk supply or cut-to-length exhaust hose may be more practical. For marine heater systems, the route should be confirmed from heater outlet to the final exhaust discharge point before ordering.
| Supply Format | Best For | Buyer Note |
|---|---|---|
| Fixed Kit Length | OEM heater kits, replacement packs and private label accessories | Length tolerance and packaging method should be defined before production. |
| Custom Cut Length | Special installations, marine systems and equipment projects | Provide route photos, outlet position and silencer location. |
| Bulk Supply | Distributors, workshops and installation companies | Allows local cutting but requires correct tools and handling. |
Clamp and Connector Requirements
Clamps and connectors are not secondary details. They determine whether the exhaust hose can be mounted securely and sealed properly. When ordering diesel heater exhaust hose, buyers should confirm whether they need hose only, hose with clamps, hose with connectors or a complete exhaust accessory pack.
| Accessory | Main Function | What to Confirm |
|---|---|---|
| Exhaust Clamp | Secures the exhaust hose to the heater outlet, connector or silencer | Clamp size, tightening range and quantity per hose |
| Exhaust Connector | Joins hose sections or adapts the hose to another component | Connector OD, hose ID and joint layout |
| Exhaust Silencer | Reduces exhaust outlet noise in the heater system | Silencer inlet and outlet diameter |
| Insulation Sleeve | Protects surrounding components from radiant heat near the exhaust hose | Sleeve ID, length, temperature exposure and route position |
| Outlet Fitting | Supports final exhaust discharge in vehicle or marine installations | Connection diameter, material and mounting position |
Installation Requirements for RV, Marine and Parking Heater Systems
The exhaust pipe route should be planned before the hose is cut. The route must allow secure mounting, proper connection to accessories and enough separation from heat-sensitive materials. For confined systems, heat protection may be required around nearby cables, hoses, panels or insulation materials.
Confirm outlet location, underside routing, frame clearance and nearby panels before choosing hose length.
Confirm hose diameter, outlet fitting, discharge point and whether a protective sleeve is needed near cabin structures.
Use fixed hose lengths, matching clamps and consistent accessory packaging for repeatable kit assembly.
Check vibration, mounting brackets and service access when designing replacement exhaust pipe length.
Confirm exhaust outlet diameter, route temperature and whether additional insulation or shielding is required.
Define hose size, length, clamp set, packaging and accessory kit before batch production.
When to Use Exhaust Insulation or Heat Protection
A stainless steel exhaust hose carries hot exhaust gas. If it runs near plastic parts, wiring, fuel lines, rubber hoses, panels, insulation materials or confined cabin structures, additional heat protection may be required. This can include an exhaust insulation sleeve, heat reflective sleeve, local reflective tape or an exhaust heat shield material.
The correct heat protection method depends on temperature exposure, clearance, service space and surrounding materials. For exhaust-side applications, do not use warm air duct insulation as a substitute for exhaust heat protection unless the material is specified for that condition.
- Use exhaust heat protection when the pipe is close to sensitive components.
- Confirm sleeve inside diameter before covering corrugated exhaust hose.
- Check route clearance before adding insulation because the final outside diameter increases.
- For OEM kits, define whether the insulation is supplied loose or pre-installed.
- Separate exhaust-side protection from warm-air duct insulation in product descriptions.
Common Ordering Mistakes
Diesel heater exhaust hose is a functional exhaust component. Sourcing errors usually happen when the buyer uses only a general name without confirming the actual system dimensions.
- Mixing 24mm and 25mm without measurement: always confirm heater outlet, connector and silencer diameter.
- Ordering hose without clamps: the hose may arrive correct, but installation cannot be completed cleanly without matching clamps.
- Ignoring the silencer connection: silencer inlet and outlet size must match the hose or connector.
- Using warm air ducting terms for exhaust parts: exhaust hose carries combustion exhaust gas; warm air ducting transfers cabin air.
- Choosing a hose that is too long: unnecessary bends can complicate routing and packaging.
- Forgetting heat protection: nearby wires, hoses and panels may need a sleeve or shield.
Related BSTFLEX Products
Diesel heater exhaust hose belongs to the exhaust-side part of the heater system. It can be promoted together with heat protection, exhaust insulation and warm air ducting products, but each product should be clearly separated by system position.
- Flexible Stainless Steel Diesel Heater Exhaust Hose for 22mm, 24mm, 25mm, 30mm and custom heater exhaust pipe supply.
- Aluminized Heat Protection Tube and Warm Air Ducting for heater ducting, heat protection tube, exhaust-related ducting and thermal management products.
- Exhaust Heat Shield Insulation for exhaust pipe, heater exhaust and engine thermal protection applications.
- Aluminum Coated Fiberglass Heat Reflective Sleeve for radiant heat protection around hoses, wires and tubes.
- Adhesive Backed Aluminum Heat Reflective Tape for local wrapping, sealing and reflective protection.
Request Diesel Heater Exhaust Hose by Diameter, Length and Accessory Set
BSTFLEX supplies stainless steel diesel heater exhaust hose, 24mm diesel heater exhaust pipe, 25mm parking heater exhaust pipe, marine diesel heater exhaust hose and custom flexible exhaust hose for heater kits, RVs, boats, trucks and OEM exhaust routing projects.
- 22mm, 24mm, 25mm, 30mm and custom exhaust hose sizes
- Custom cut length, fixed kit length or bulk supply
- Stainless steel flexible corrugated exhaust pipe construction
- Clamps, connectors, silencers and insulation sleeve options
- Private label, accessory bag and OEM carton packaging available
- Batch production for heater kit manufacturers and distributors
Conclusion
Choosing diesel heater exhaust hose is not only a question of 24mm or 25mm. Buyers should confirm the heater outlet diameter, exhaust hose ID, silencer connection, clamp range, required length, routing path and heat protection requirement before ordering.
BSTFLEX can supply flexible stainless steel diesel heater exhaust hose in standard and custom sizes, with clamps, connectors, insulation sleeves and OEM packaging according to project requirements. For accurate quotation, send the required diameter, length, connection details, application photos and accessory list.
View the product here: BSTFLEX Flexible Stainless Steel Diesel Heater Exhaust Hose.
FAQ: Diesel Heater Exhaust Hose Selection
Is 24mm diesel heater exhaust pipe the same as 25mm diesel heater exhaust hose?
No. The sizes are close, but they should not be treated as the same without checking the heater outlet, connector, clamp and silencer inlet. Always confirm actual ID and connection size before ordering.
How do I choose the right diesel heater exhaust hose length?
Measure the route from the heater exhaust outlet to the silencer, discharge point or final outlet fitting. Avoid unnecessary long routes and confirm whether the hose is supplied as fixed length, custom cut length or bulk supply.
Do I need clamps with diesel heater exhaust hose?
In most installations, clamps are required to secure the hose to the heater outlet, connector or silencer. The clamp size and tightening range should match the hose and fitting.
Is diesel heater exhaust hose the same as warm air ducting?
No. Diesel heater exhaust hose carries combustion exhaust gas. Warm air ducting transfers heated cabin air from the heater outlet to the cabin or compartment.
Can exhaust hose be supplied with insulation sleeve?
Yes. BSTFLEX can supply exhaust hose with compatible insulation sleeve or heat protection products when the exhaust route is close to heat-sensitive components.
What information is needed for a quotation?
Please provide exhaust hose inside diameter, required length, material requirement, clamp or connector needs, silencer connection size, application, packaging method and order quantity.
