Hose Protector Silicone Fiberglass Fire Sleeve

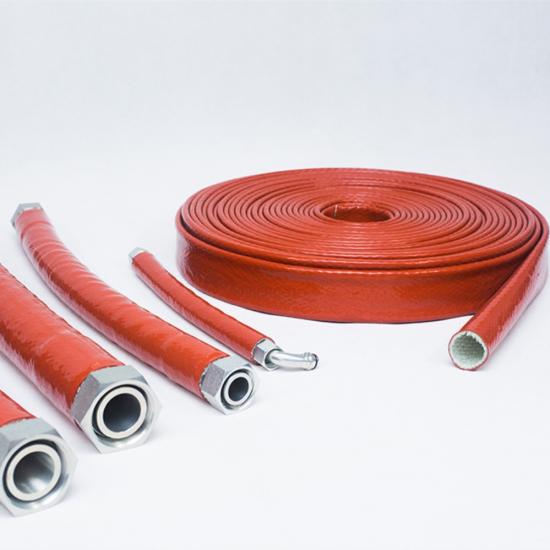

BSTFLEX Hose Protector Silicone Fiberglass Fire Sleeve is made by braided glass fibre sleeve coated with heavy silicone rubber. The certificated fire sleeve is non-flammable and is self-extinguishing.
  • Item NO.:

    EFRS
  • Description

  • Specifications

BST-EFRS Hose Protector Silicone Fiberglass Fire Sleeve made of braided fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber. It is a self-extinguishing thermal protection sleeve. Silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination.
Firesleeve protects continuously to 500°F (260°C) and will withstand a molten splash at 2200°F (1200°C).
It offers excellent short term flame protection and great insulation properties for high temperature.

Applications
Can be easily installed over hoses, cables, tubing or pipes. It offers excellent resistance to molten metal splash, radiant heat, abrasion, corrosive atmosphere, moisture, chemicals, vibration, and electricity.
In addition to protecting hoses, cables, pipes, etc., Fire Sleeve can protect operators from incurring scorching burn injuries on hot braided hoses and pipes. Fire Sleeve's excellent moisture resistance makes it ideal for outdoor applications and heat resistance.
It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields, protect cables, wires and hoses with very high temperature.

Custom Options
Special bulk packaging to maximize productivity, minimize waste
Hook & Loop Closure

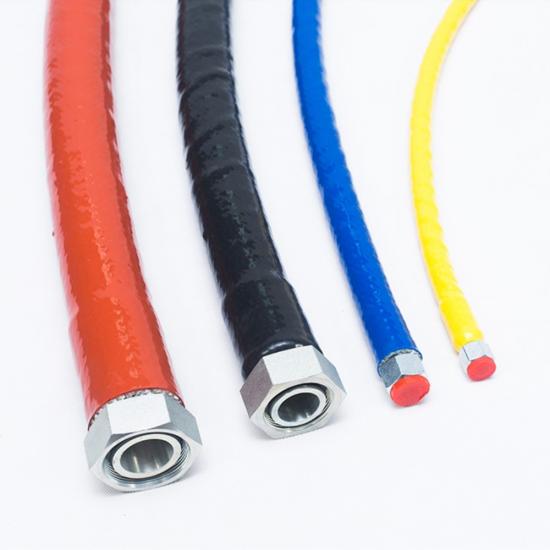

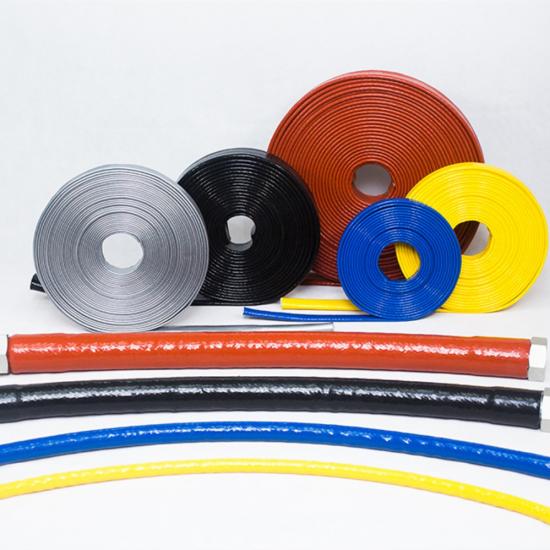

Colors (Blue, Green, Yellow, Black, Grey, Red)
Custom printing layline (logo, brand, part number, etc.)

Size Range
1/4" (6.4mm) through 6" (152.4mm)
Datasheet
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
BST-EFRS-6 1/4 6 -4 20
BST-EFRS-8 5/16 8 -5 20
BST-EFRS-10 3/8 10 -6 20
BST-EFRS-11 7/16 11 -7 20
BST-EFRS-13 1/2 13 -8 20
BST-EFRS-16 5/8 16 -10 20
BST-EFRS-19 3/4 19 -12 20
BST-EFRS-22 7/8 22 -14 20
BST-EFRS-25 1 25 -16 20
BST-EFRS-29 1 1/8 29 -18 20
BST-EFRS-32 1 1/4 32 -20 20
BST-EFRS-35 1 3/8 35 -22 20
BST-EFRS-38 1 1/2 38 -24 20
BST-EFRS-41 1 5/8 41 -26 20
BST-EFRS-44 1 3/4 44 -28 20
BST-EFRS-48 1 7/8 48 -30 20
BST-EFRS-51 2 51 -32 20
BST-EFRS-57 2 1/4 57 36 20
BST-EFRS-60 2 2/5 60 -38 20
BST-EFRS-64 2 1/2 64 -40 20
BST-EFRS-67 2 5/8 67 -42 20
BST-EFRS-70 2 3/4 70 -44 20
BST-EFRS-73 2 7/8 73 -46 20
BST-EFRS-76 3 76 -48 20
BST-EFRS-83 3 1/4 83 -52 20
BST-EFRS-89 3 1/2 89 -56 20
BST-EFRS-95 3 3/4 95 -60 20
BST-EFRS-102 4 102 -64 20
BST-EFRS-114 4 1/2 114 -72 20
BST-EFRS-121 4 3/4 121 -76 20
BST-EFRS-127 5 127 -80 20
BST-EFRS-152 6 152 -96 20
